    22" display AOI Inspection Machine , Precision PCB Automated Optical Inspection Machine

    Ask Lasest Price
    Brand Name : HONREAL
    Model Number : H910
    Certification : CE ISO
    Price : USD 13000-16000 Per Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 15Work Days
    • Product Details
    • Company Profile

    22" display AOI Inspection Machine , Precision PCB Automated Optical Inspection Machine

    High Precision SMT PCB AOI, PCB Automated Optical Inspection Machine


    Parameter configuration:


    CategoryProjectSpecifications
    Visual identity system
    InspectionUsing Multiple Algorithms Synthetically Such As Widm,Color Image Contrast Technology,Color Extracting Technology, Similarity, Two-Value Handling Technology ,Ocr/Ocv And So On.
    Camera5 million Color Ccd Camera: 10um/15um/18um/20um/25um
    Light sourceRing-shaped three-dimensional multi-channel colored light, choose RGB/RGBW/RGBR/RWBR depending on the application
    Image processing speed0201 components<10 ms
    Per-Image Time<170ms
    Testing contentPaste Printig DefectsMisaligned, Overflow, Insufficient, Pasting Open, Stain
    Component DefectsMissing, Misaligned, Skewed, Tombstone, Billboard, Overtumed, Reversed Polarty, Wrong, Damaged
    Solder DefectsOverflow, Insufficient, Short Solder, Stain
    Anti Static MeasuresAnti Static Electric Outlet, Anti Static Wreath
    Mechanism system
    PCB size20 mm × 20 mm to 450mm x 350 mm (Can Make Bigger Size According To Clients’ Demands)
    PCB thickness0.3 mm ~5.0 mm
    PCB Warp Tolerance<5 mm
    Component ClearanceTop<35mm,Bottom<75mm
    Minimum Space Parts01005chip & 0.3mmpitch
    X,Y platformDriverAC Serverv
    Accurate location<8um
    Movement speed830 mm/SEC (MAX)
    Software system
    Operating systemWindows 7 64-bit
    Controlling & RecognizingcharacteristicsWidm, Study Ok Template, Automatically Set Template Imaging, Identify Data And Error Numerical Value
    operationGraphic Programming, Take Along With Chip Library And Get a Inspection Frame According With Chip Shape, Aureate Position, Micron Adjust, And Easy Programming
    MarkMark Numbers0 – 2marks Can Be Chosen
    Recognising Speed0.5s/Pcs
    Control system
    Computer hostCPU:Intel E3, Memory:16GB, Harddisk:1TB
    Display22 "LED display
    Other parameters
    Machine dimension(L*W*H)L1120mm×900mm×1400 mm
    WeightAbout 480 kg
    PowerAC220v, 10%, Single Phase 5a 50/60hz, Power Consumption 600w

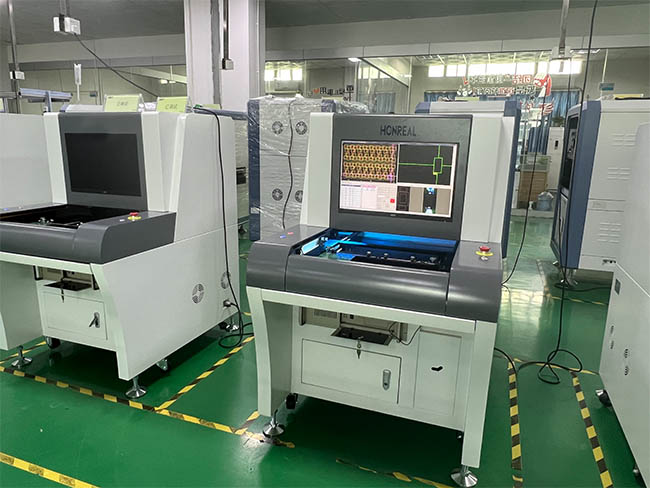

    Photo Show


    Company Information


    Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents



    Certification


    FAQ

    Q:How can you guarantee your sales’ quality?
    A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.


    Q:How is the training?

    A:After buying our machines, your engineers can go to our company or it is so easy to operate

    the machine according the training video and user manual,the user manual will come with the machine together.


    Q: I would like to ask you if it's possible to have my logo on the product.
    We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.


    Q: Is it hard to use these machines?

    A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
