Hot Air Conveyor Reflow Oven Smt Solder Reflow Machine Lead Free
Solder
Features:
HR Series High End/Nitrogen Reflow Soldering Machine
1. Modular design of temperature zone makes maintenance convenient
and quick.
2. Self-extending guide rail design further prevents deformation
from causing the board to fall off.
3. Segmented heating method saves energy and reduces power
consumption.
4. One extended forced constant air cooling zone at the top and
bottom
5. Flux recovery device meets environmental protection requirements
6. SMEMA communication enables automated operation mode
7. About 70% of the machine uses imported brand accessories to
ensure durability and stability.
| Machine | HR-8C | HR-10C |
| Heating zones | upper 8 zones | upper 10 zones |
| bottom 8 zones | bottom 10 zones |
| Heating tunnel | 3110mm | 3890mm |
| Dimension | L5520*1430*1530 | L6300*1430*1530 |
| Net weight | about 2760Kg | about 3060Kg |
| General power | 64KW | 83KW |
| Power consumption | Approx.7--30KW | Approx.9--38KW |
| Rising time | 20 minutes | 20 minutes |
| Controlling type | PC + PLC controlling |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---300℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±1.5 ℃ |
| Cooling | 3 cooling zones (top and bottom) |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Max PCB width | 400mm |
| PCB clearance | Top / Bottom 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 300-2000mm/min |
| Hook lift | Electrical screw pole |
| UP/Downstream communication | SMEMA |
| Power supply | 380v,3ph,50hz |

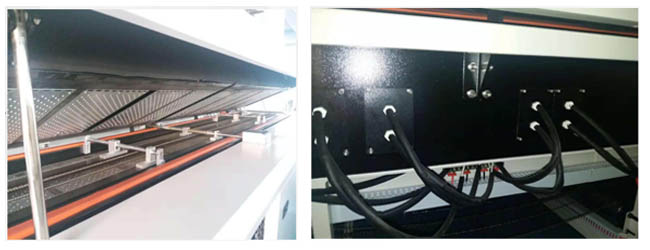

Temperature zone part:
- Small hot air circulation structure, hot air volume can be adjusted
by computer.
- Imported high temperature resistant wind motor with air volume up
to 70CFM.
- Extend the length of the temperature zone to 300mm/temperature zone
- Nickel-chromium heating wire imported from Japan
- 3mm thick electrolytic plate air distribution plate, uniform heat
distribution
- Segmented heating to reduce power consumption
- Unique front and rear air return design to avoid cross-temperature
- Thermocouple wire imported from Japan
- PID closed-loop control, accuracy reaches ±1℃
- Transverse temperature difference up to 2℃
- Process capability CPK reaches 1.784
Installation and Calibration
1.Working environment and conditions
This equipment shall be placed on horizontal, dry and
well-ventilated workshop;
Ambient temperature :5~45℃ ;
Ambient humidity: 20~95%;
Rated power supply: 380V, 100A (power wire shall be stranded wire
of 16mm²), 3-phase and 5 wires system;
Artificial draft system shall be installed at both ends of this
equipment. The air flow of the draft tube is 25 m³/min.
2.Installation of equipment
Shall position the equipment according to the real production
requirements and practical situation;
Raise the footpads of this equipment and simultaneously level
this equipment by using these footpads
This equipment must be installed horizontally.
3.Calibration
All parameters of this equipment shall be adjusted in accordance
with customer’s requirements such as product, production rate and
solder paste used. These adjustments comprise the linear speed of
the chain, the temperature of each zone, etc. This equipment has
been calibrated before shipment. It is only necessary to check if
your power supply is applicable to this equipment when arriving at
your factory.
Shenzhen Honreal Technology Co.,Ltdis a national high-tech
enterprise,Specializing in smt equipment research and development,
production, sales. Services for the world´s top 500 electronic
companies.The registered capital of the company is 5
million.Havingexperienced technical team andexcellent technical
innovation ability, Creating a better product supply chain and
service team and meeting differentcustomer needs is our long-term
goal. We will meet customer needs by understanding customers,
putting them first and providing valuable services.
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous
testing before they are delivered to you, to ensure the excellent
performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company
or it is so easy to operate
the machine according the training video and user manual,the user
manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the
product.
We hope you know that our company Aogeo perfectly support
customized logo service,we’re do this. Besides, it's totally
free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is
enough to learn to operate the machines.
