Smt Oven Solder PCB Reflow Oven Hot Air Reflow Soldering Machine
Product introduction:
1. Streamline shape design make the oven looks great,PLC+PID closed
loop control to achieve high prectise temperature control and
repeatable profilies.
2. It can save 50 groups temperature parameters and provide extra 2
ports for profile testing.
3.Brand electrical component like Schneider (German) breaker, Omron
(Japan) box relay. Meanwhile the CE certificated blower is
specially design for lead-free reflow oven. It runs stable and
lower noise.
4. Upper zone, hood and electrical box cover can be opened easily.
It is convenient for cleaning and maintenance.
5. The inner tunnel of the oven is made of stainless steel which
can stand the high temperature and easy for cleans.
6. The entire upper and bottom zones are forced hot air convection.
7. Stainless steel mesh belt, the rail is daelt with hardened
process to make it more stability, and chain conveyor and SMEMA .
8. Totally meet various requirements for lead free processing.
modular design to get quick and simple maintenance so that reducing
the maintenance time & cost.
Machine's parameters:
| Machine | HRE-630 |
| Heating zones | Upper 6 zones |
| bottom 6 zones |
| Heating tunnel | 1540mm |
| Dimension | L2550*W750*H1250 |
| Net weight | about 360Kg |
| General power | 33KW |
| Power consumption | Approx.4--8KW |
| Rising time | 15 mins |
| Controlling type | Touch screen and PLC |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---350℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±2 ℃ |
| Cooling | One cooling zones,fans for cooling |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Mesh belt width | 330mm |
| Max PCB width | 300mm |
| PCB clearance | 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-900mm/min |
| Hook lift | Manual |
| Power supply | 380v,3ph,50hz |
Machine schematic (HRE-630) :

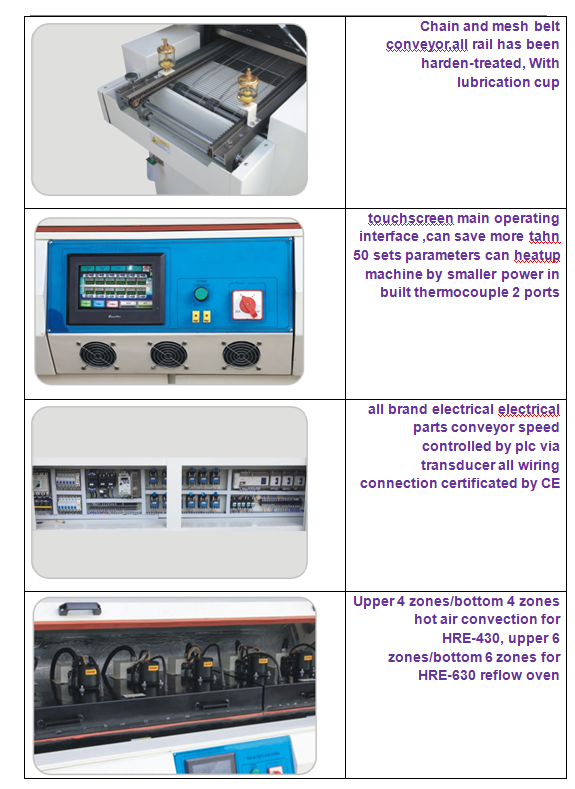

Machine characters:
Shenzhen Honreal Technology Co.,Ltdis a national high-tech
enterprise,Specializing in smt equipment research and development,
production, sales. Services for the world´s top 500 electronic
companies.The registered capital of the company is 5
million.Havingexperienced technical team andexcellent technical
innovation ability, Creating a better product supply chain and
service team and meeting differentcustomer needs is our long-term
goal. We will meet customer needs by understanding customers,
putting them first and providing valuable services.
Our Services
Services and commitments
Before buying the product, we will be a comprehensive analysis of
the views and requirements and recommend it to the actual needs of
customers with the most suitable products and let customers know
that the performance characteristics of the selected product
referred to in accordance with customers.
In purchasing the products, we promise to allow customers to
clearly know the completion of the product. In strict accordance
with the relevant provisions of the contract terms of production,
delivery, to ensure product intact and in place within the
stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all
the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation,
commissioning and training of technical personnel for the buyer
sold the equipment.
We provide long-term technical support, Our company has adequate
supply of consumable buyer if requested to order spare parts, our
company can provide timely.
