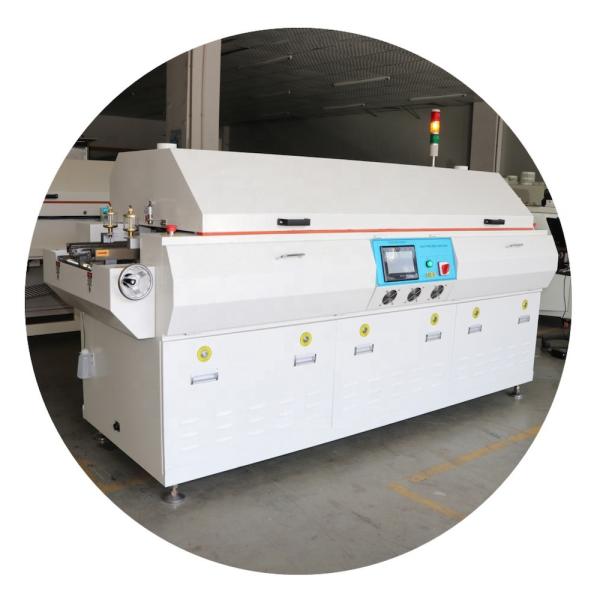

PCB Production Line Machine 6 Zones SMT Lead Free Reflow Soldering Oven Smd
Product introduction:

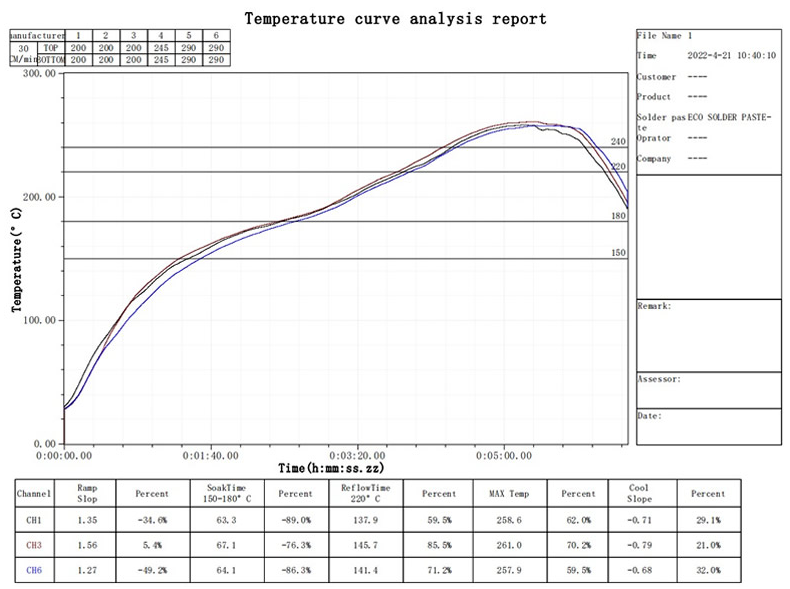

1.Streamline shape design make the oven looks great,PLC+PID closed loop control to achieve high prectise temperature control and repeatable profilies.2.It can save 50 groups temperature parameters and provide extra 2 ports for profile testing.
Brand electrical component like Schneider (German) breaker, Omron (Japan) box relay. 3.Meanwhile the CE certificated blower is specially design for lead-free reflow oven. It runs stable and lower noise.
4.Upper zone, hood and electrical box cover can be opened easily. It is convenient for cleaning and maintenance.
5.The inner tunnel of the oven is made of stainless steel which can stand the high temperature and easy for cleans.
6.The entire upper and bottom zones are forced hot air convection.
7.Stainless steel mesh belt, the rail is daelt with hardened process to make it more stability, and chain conveyor and SMEMA .
8.Totally meet various requirements for lead free processing. modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
Machine's parameters:
| Model | HRM-640 |
| Heating zones | Upper 6 zones |
| Bottom 6 zones | |
| Heating tunnel | 1938mm |
| Dimension | L3571*W1200*H1450 |
| Net weight | about 1100Kg |
| General power | 41KW |
| Power consumption | Approx.8--8KW |
| Ramp Time from Room Temperature to 260 Deg C | < 15 mins |
| Controlling type | Touch screen and PLC |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---350℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±2 ℃ |
| Cooling | one cooling zones, air cooler for cooling |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Mesh belt width | 450mm |
| Max PCB width | 400mm |
| PCB clearance | 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-1000mm/min |
| Hook lift | Electrical screw pole |
| Power supply | 380v,3ph,50hz |
HRE-640 Lead Free Reflow Oven Controlling System
1.Full English interface, easy to be operated which can stock more than 50groups parameters with recommended leaded/leaded free
2.temperature/speed setting before machine be delivered. You can master how to operate it within 10 minutes.
3.Unique program design can adjust the start power consumption andlower the start current. Best choice for customer with limit power supply.
4.Colored touchscreen interface with PLC controller ensure stable operation of machine.

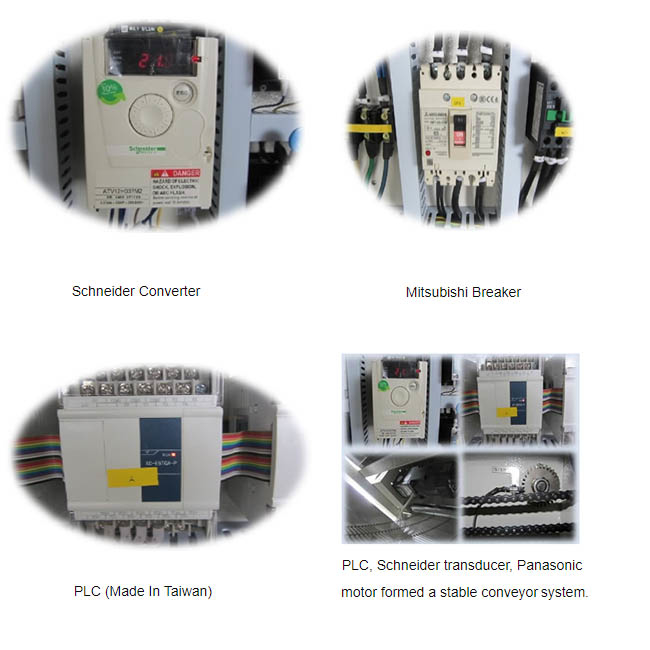

HRE-640 Lead Free Reflow Oven Electrical
