SMT Production Line Automatic Lead Free Wave PCB Board Soldering
Machine
HR-300E Lead Free Wave Solder Machine Features:
● PLC and touchscreen controlling system which can save more than 50
sets parameters. User-frienly
interface is easy to be operated,temperature can be
set/saved/modified in touchscreen.
● The high quality sprayer provides perfect atomization performance
of the flux.It is driven by stepper motor and rail / slider, moving
speed set on touchscreen, stepper driver and PLC control system
make a smooth and low noisy movement.
● Forced air convection preheat zone creates enough uniform heat for
the PCB.Specially designed preheating system makes maintenance
easier,motor and blower can be dismantled easily from bottom,heater
can be move out from rear side like drawer.
● Adopt cast iron heater for the solder pot, its mounted outside of
the solder pot. This new assembling way prolongs the lifetime of
the solder pot.
● Dual wave solder pot. Both wave heights are controlled invidually
by transducer. Changing the wave height via adjusting the frequency
of wave motor's power supply in touchscreen.
● Solder pot is made of Ti material, 100% capable for the lead-free
solder.
● Customer can set on and off time of machine with weekly timer.
● Light&Sound alarm for overheating and emergency stop.
● Ti finger conveyor system, be able to form an in-line through-hole
soldering line.
● Customer can choose "L" finger for pallet, or dual hook finger for
pcb.
● N2 optional for the solder pot.
| HR-300E - Specifications |
| Model | HR-300E |
| PCB width | 50-400MM |
| Solder pot capacity | 250kg |
| Running power/general power | 9-10KW/18KW |
| Dimension | 2900(L)*1150(W)*1350(H) |
| Net weight | 800KG |
| Controlling system | Touchscreen + PLC |
| Conveyor motor | 3Ph 220V ,90W |
| Conveyor speed | 200MM-1800MM/Min |
| Flux capacity | 6.5 liter |
| Alcohol capacity | 4.5 liter |
| PCB Conveyor direction | Left to right |
| Spray method | stepper motor drive,linear rail and slider moving sprayer |
| Sprayer | Japan ST-6 |
| Preheating zone | 1 individual bottom preheating zone |
| Preheating power | 7.5kw/zone |
| Solder pot material | Fully Ti |
| Solder pot heater | Cast iron |
| Heater power | 1.2KW*7PCS |
| Wave number | dual waves |
| Wave type | Turbulence first wave and Lambda 2nd wave |
| Melting time | 60 minutes |
| Solder pot lift up&down | Manual |
| Solder pot in&out | Motorized |
| Finger cleaning pump | 1PH 220V 10W |
| Finger type | Dual hook |
| Finger material | Ti |
| Solder angle | 5-7° |
| Air supply | 3-5BAR |
| Power supply | 3PH 380V 50HZ |

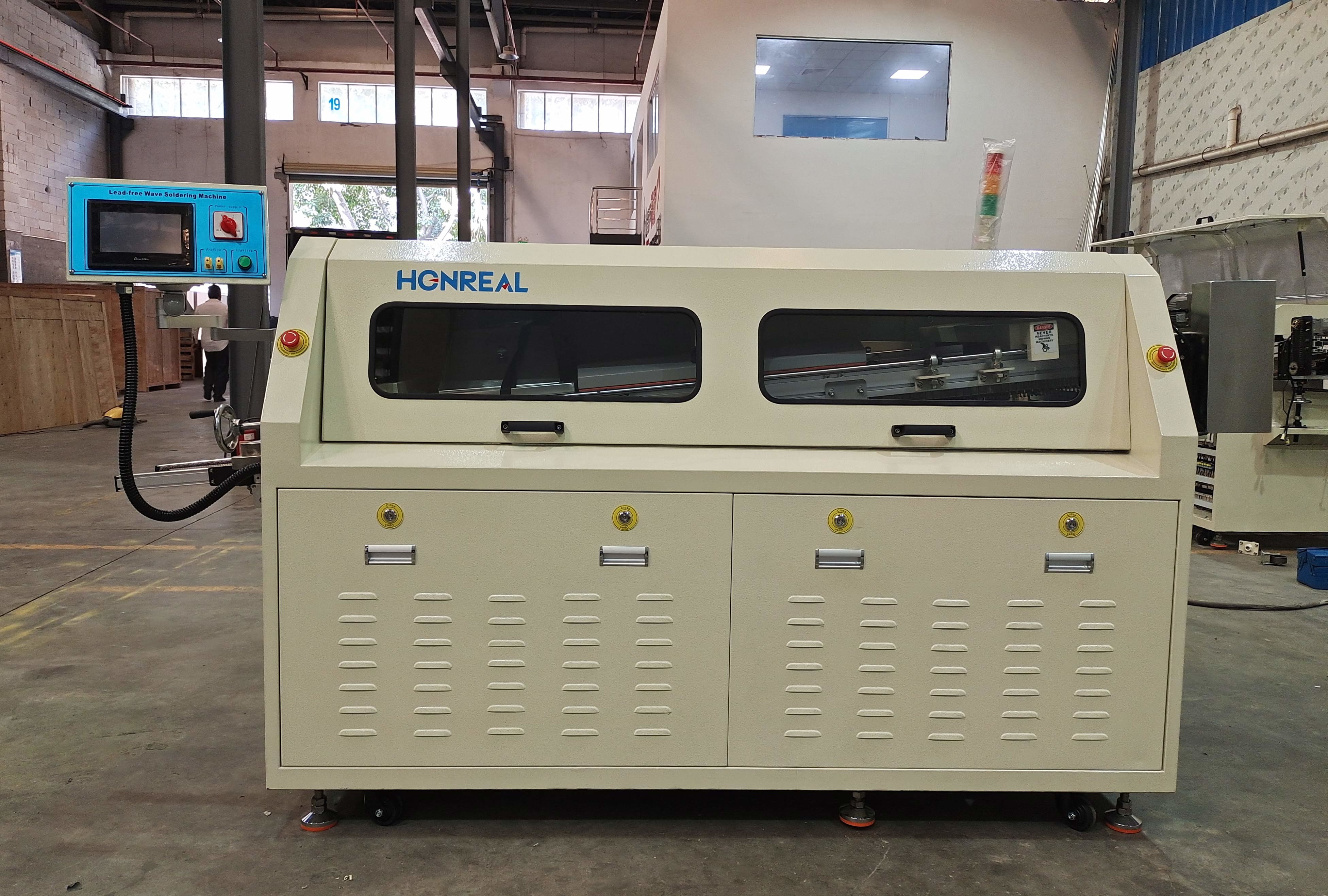

Photo Show:
HR-300E Lead Free Wave Solder Machine lncludes:
- Lead free wave solder machine.
- Spraying system driven by step motor and PLC controller.
- 1 individual bottom preheating zones.
- Titanium alloy dual wave solder pot.
- Titanium alloy finger conveying system.
- Colored touch screen panel .
- Machine dimension: 2800(L)*1250(W)*1370(H).Machine weight: 750KGS.
- 1 year parts warranty.
