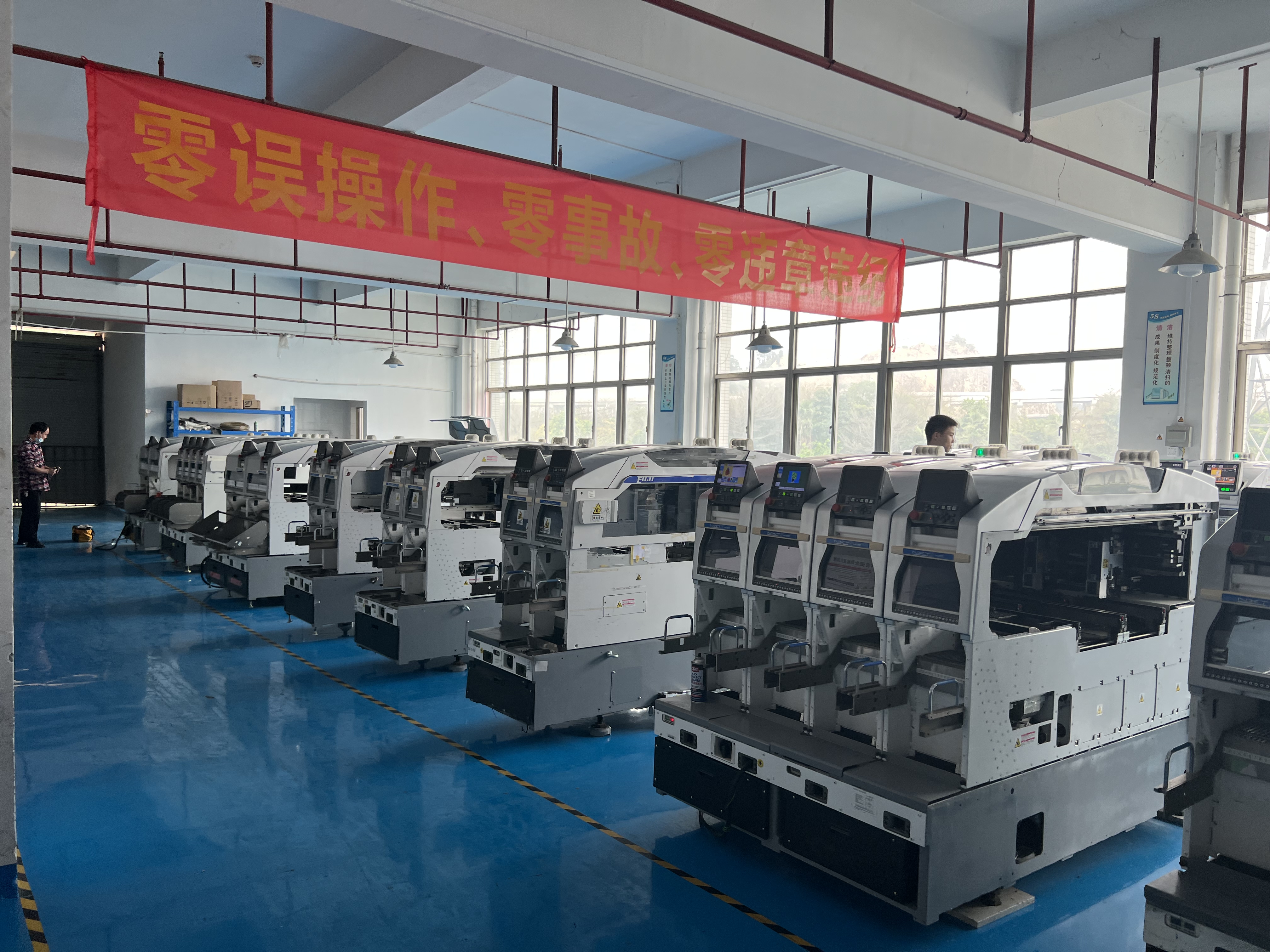

| Applicable PCB size (LxW) | 48 x 48 mm to 305 x 610 mm (single conveyor)
48 x 48 mm to 305 x 510 mm (double conveyor/single)
48 x 48 mm to 305 x 280 mm (double conveyor/dual) | 48 x 48 mm to 610 x 610 mm (single conveyor)
48 x 48 mm to 610 x 510 mm (double conveyor/single)
48 x 48 mm to 610 x 280 mm (double conveyor/dual) |
| Part types | Up to 20 types of parts (calculated using 8 mm tape) | Up to 45 types of parts (calculated using 8 mm tape) |
| PCB loading time | For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules),
3.4 sec (transport between M6 III modules) |
Placement accuracy
(Fiducial mark standard)
* The placing accuracy is obtained from tests conducted by Fuji. | | H24G | : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority
mode) (3sigma) cpk≥1.00 | | V12/H12HS | : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 | | H04S/H04SF | : +/-0.040 mm (3sigma) cpk≥1.00 | | H08/H04 | : +/-0.050 mm (3sigma) cpk≥1.00 | | H02/H01/G04 | : +/-0.030 mm (3sigma) cpk≥1.00 | | H02F/G04F | : +/-0.025 mm (3sigma) cpk≥1.00 | | GL | : +/-0.100 mm (3sigma) cpk≥1.00 |
| | H24G | : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority
mode) (3sigma) cpk≥1.00 | | V12/H12HS | : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 | | H08M/H04S/H04SF | : +/-0.040 mm (3sigma) cpk≥1.00 | | H08/H04/OF | : +/-0.050 mm (3sigma) cpk≥1.00 | | H02/H01/G04 | : +/-0.030 mm (3sigma) cpk≥1.00 | | H02F/G04F | : +/-0.025 mm (3sigma) cpk≥1.00 | | GL | : +/-0.100 mm (3sigma) cpk≥1.00 |
|
Productivity
* The throughput above is based on tests conducted at Fuji. | | H24G | : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard
mode) | | V12 | : 26,000 cph | | H12HS | : 24,500 cph | | H08 | : 11,500 cph | | H04 | : 6,500 cph | | H04S | : 9,500 cph | | H04SF | : 10,500 cph | | H02 | : 5,500 cph | | H02F | : 6,700 cph | | H01 | : 4,200 cph | | G04 | : 7,500 cph | | G04F | : 7,500 cph | | GL | : 16,363 dph (0.22 sec/dot) |
| | H24G | : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard
mode) | | V12 | : 26,000 cph | | H12HS | : 24,500 cph | | H08M | : 13,000 cph | | H08 | : 11,500 cph | | H04 | : 6,500 cph | | H04S | : 9,500 cph | | H04SF | : 10,500 cph | | H02 | : 5,500 cph | | H02F | : 6,700 cph | | H01 | : 4,200 cph | | G04 | : 7,500 cph | | G04F | : 7,500 cph | | 0F | : 3,000 cph | | GL | : 16,363 dph (0.22 sec/dot) |
|
| Supported parts | | H24G | : 0201 to 5 x 5 mm | Height | : up to 2.0 mm | | V12/H12HS | : 0402 to 7.5 x 7.5 mm | Height | : up to 3.0 mm | | H08M | : 0603 to 45 x 45 mm | Height | : up to 13.0 mm | | H08 | : 0402 to 12 x 12 mm | Height | : up to 6.5 mm | | H04 | : 1608 to 38 x 38 mm | Height | : up to 9.5 mm | | H04S/H04SF | : 1608 to 38 x 38 mm | Height | : up to 6.5 mm | | H02/H02F/H01/0F | : 1608 to 74 x 74 mm (32 x 180 mm) | Height | : up to 25.4 mm | | G04/G04F | :0402 to 15 x 15 mm | Height | : up to 6.5 mm |
|
| Module width | 320 mm | 645 mm |
| Machine dimensions | L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm |
