    6 Channels SMT Thermal Profiler Equipment Temperature Tester For Reflow Oven

    Ask Lasest Price
    Brand Name : Bestemp
    Model Number : X6
    Price : USD2600-3200/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 3 -5 Work Days
    • Product Details
    • Company Profile

    6 Channels SMT Thermal Profiler Equipment Temperature Tester For Reflow Oven

    Bestemp Reflow Oven Temperature Tester Bestemp X6 Reflow Soldering Temperature Tester


    Characteristic:
    1..High efficiency, data can be stored up to 16 times continuously, and can be downloard to computer for group data viewing.


    2. Modular analysis mode, simple and fast analysis system can be based on PC (Windows) and PDA (Pocket) for data analysis


    3.Low power consumption, large capacity Li-ion battery can be used for power supply and the capacity can reah 2500mAh, and can work for over 100 hours without break. Quick charge for ten mintures is engouth for use.


    4.Communication mode using serial, USB and wireless transmission, suitable for a variety of working environments. Can stand the most stringent lead-free process and harsh indusrial environments


    5. Rigorous manufacturing process and precise calibration services, all exfactory instruments shall stand perfect internal calibration and external calibration. Work with CTI as stategic partner to ensure each single instrument stable and reliable.


    6.Insure all devices are with right data, reliability, small size and big capacity(can store about 5,000,000 data), using flash as the chipset, data will not be loss at any time.


    Technical Parameters


    Memory5000000 points
    Test Channel6 channels
    Sampling frequency0.05s~30 Min
    Precision±0.5℃
    Resolution0.1℃
    Run VoltageDC3.7V~DC4.2V
    Battery2500mAh
    Thermocouple TypesK
    Power≤10mAh
    Max. inner runtemperature70℃
    simulation fuctionoption


    Software Analysis


    1. BESTEMP furnace temperature testing and analysis software involves a wide range of temperature testing of electronic assembly processes. It Is a set of efficient, convenient, fast, easy to operate analysis software, its modular structure allows customers can choose what they need. And the software analysis functions are as follows:


    2. Record the temperature at each point and show it through the curve


    3. The slope and time between any two points


    4. Any point above the temperature or below the slope, time changes


    Accurately reflects the highest, lowest, average temperature and standard deviation


    5. and can do the alarm settings for each part, detailed wave soldering process

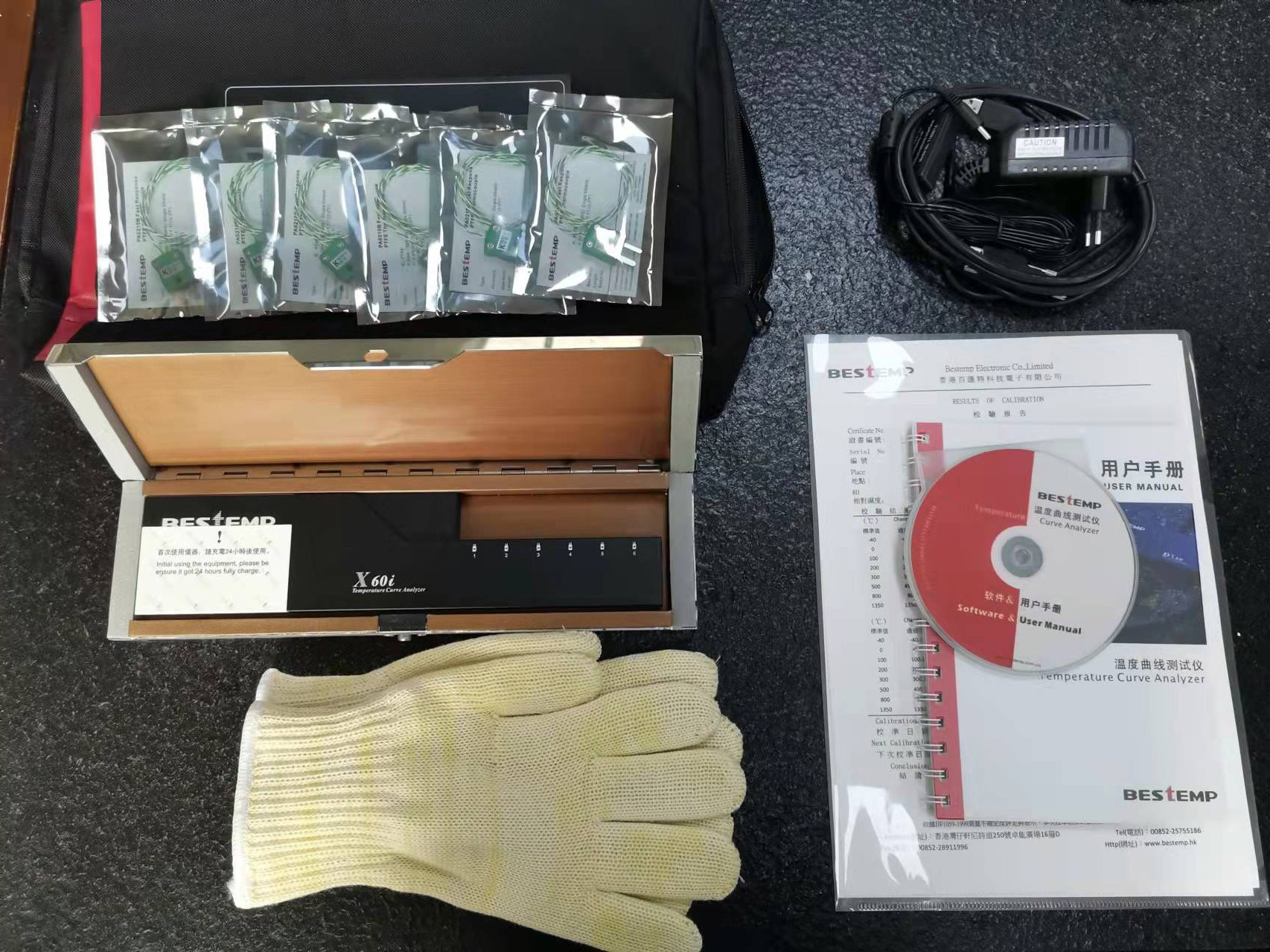

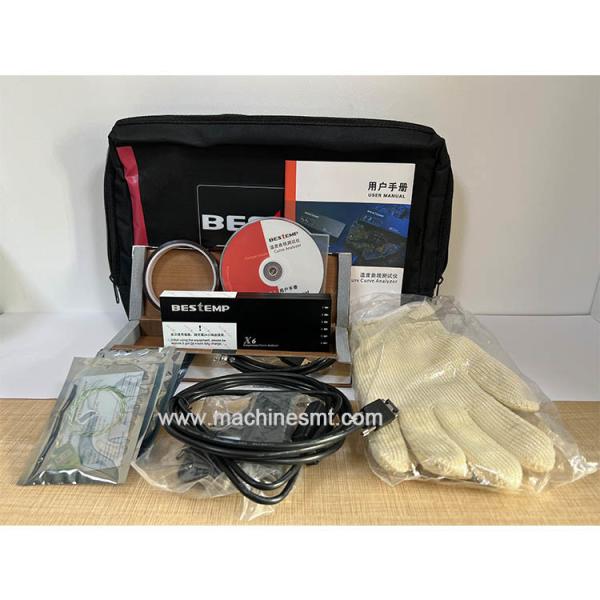

    6 Channels SMT Thermal Profiler Equipment Temperature Tester For Reflow Oven6 Channels SMT Thermal Profiler Equipment Temperature Tester For Reflow Oven
