Plc Control System Turn Over PCB Conveyor 180 - 360 Degrees
Automatic Smt Pcb Inverter
Turn over pcb 180-360 degrees Automatic SMT PCB inverter
Product introduction:
1.Stable and reliable PLC control system
2.Easy to operate LED touch screen control interface
3.Using cylinder flip, quick, smooth, precise alignment
4.Buffer deceleration design more stable, accurate
5.Optional pass working mode
6. Smooth and parallel width adjustment(leadscrew)
7.SMEMA port is compatible;
| Technical parameters |
| Function | This unit is used to invert PCB (180) Meet the need of two-sided
machining |
| PCB thickness | Min0.6mm |
| Cycling time | Approx 10seconds |
| Transport direction | Left to right/right to left(optional) |
| Transport height | 900±20mm(or customized) |
| Air pressure | 4-6 bar, MAX10L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 300V/A |
| Specifications |
Model No
| HR-350FB | HR-460FB |
| PCB size (L×W)～(L×W)mm | (50x50)～(450x350) | (50x50)～(550x460) |
| Machine size (L×W×H)mm | 500×850×1200 | 600×950×1200 |
| Weight | 110kg | 130kg |

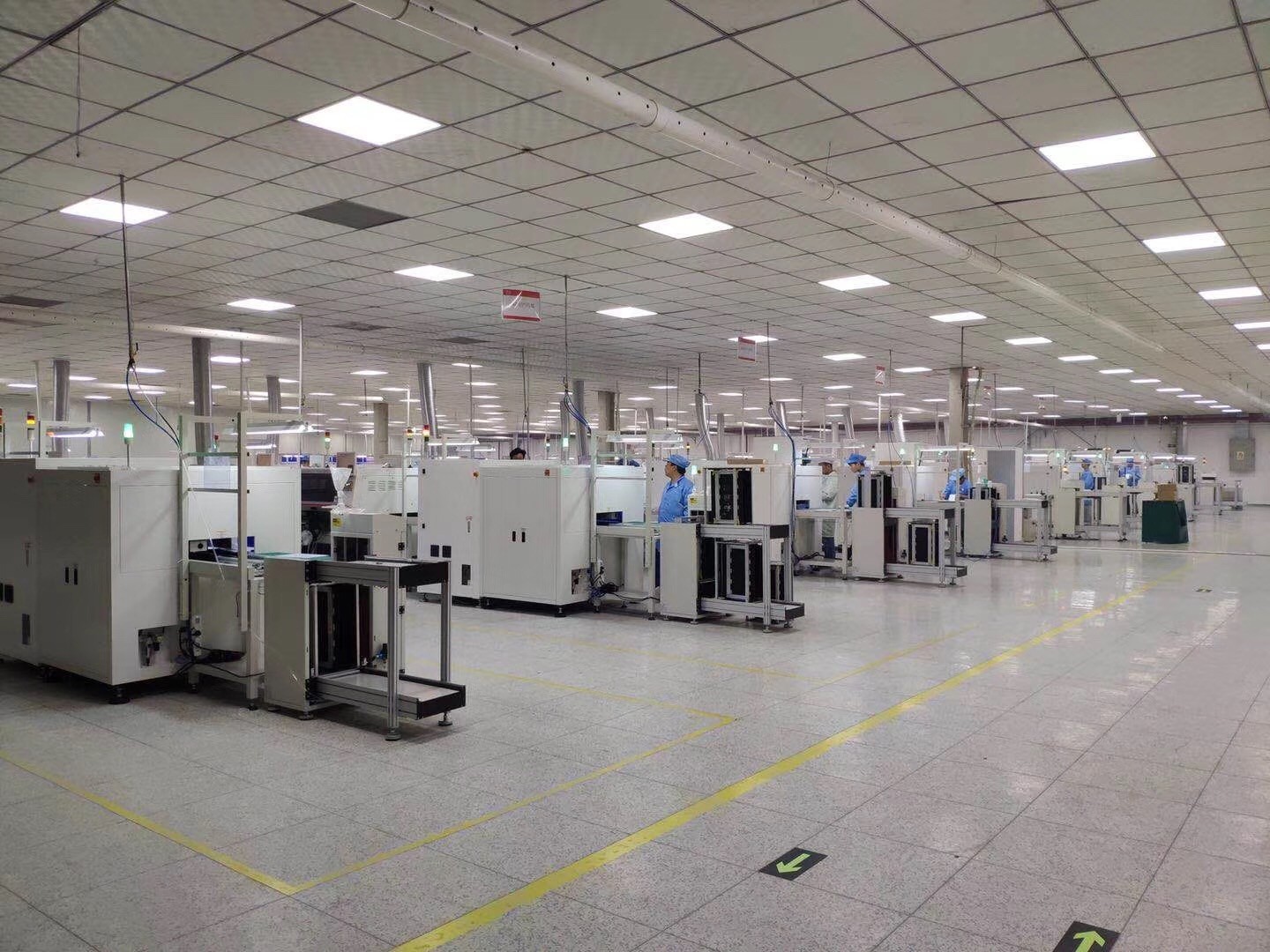

Shenzhen Honreal Technology Co.,Ltdis a national high-tech
enterprise,Specializing in smt equipment research and development,
production, sales. Services for the world´s top 500 electronic
companies.The registered capital of the company is 5
million.Havingexperienced technical team andexcellent technical
innovation ability, Creating a better product supply chain and
service team and meeting differentcustomer needs is our long-term
goal. We will meet customer needs by understanding customers,
putting them first and providing valuable services.
Services and commitments
Before buying the product, we will be a comprehensive analysis of
the views and requirements and recommend it to the actual needs of
customers with the most suitable products and let customers know
that the performance characteristics of the selected product
referred to in accordance with customers.
In purchasing the products, we promise to allow customers to
clearly know the completion of the product. In strict accordance
with the relevant provisions of the contract terms of production,
delivery, to ensure product intact and in place within the
stipulated time to customer requirements.
