PLC Control SMT Magazine Loader , Automatic PCB Loader With SMEMA Port

PCB Loading Time Approx 6 Seconds SMT Assembly Line Machine Automatic Magazine Pcb Loader

Product introduction:

This unit is used to send PCBs out from magazine to SMT production line .
Stable and reliable PLC control system;
Easy to operate LED touch screen control interface;
The pneumatic clamps of top and bottom three point provided for the magazine alignment;
Effective thrust design can ensure the PCB is unbroken;
3magazines loading capability.
Direction from left to right or right to left(optional).
Machine always fault monitoring;
Solid and stable design;
SMEMA port is compatible;

Technical parameters
Function	This unit is used to send PCBs out from magazine to SMT production line
PCB thickness	Min0.6mm
Magazine number	Transport up:1pcs,transport down:1ps,(or customized)
Step pitches select	1-4(10mm step pitches)
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Transport direction	Left to right/right to left(optional)
Transport height	900±20mm(or customized)
Air pressure	4-6 bar, MAX10L/minute
Power supply	100-230V AC(customized) single phase, MAX 300V/A

Specifications
Model No	HR-250	HR-330	HR-390	HR-460
PCB size (L×W)～(L×W)mm	(50x50)～(350x250)	(50x50)～(455x330)	(50x50)～(530x390)	(50x50)～(530x460)
Machine size (L×W×H)mm	1370×750×1200	1550×830×1200	1750×920×1200	1750×990×1200
Magazine size (L×W×H)mm	355×320×563	460×400×563	535×460×570	535×530×570
Weight	110kg	135kg	155kg	175kg

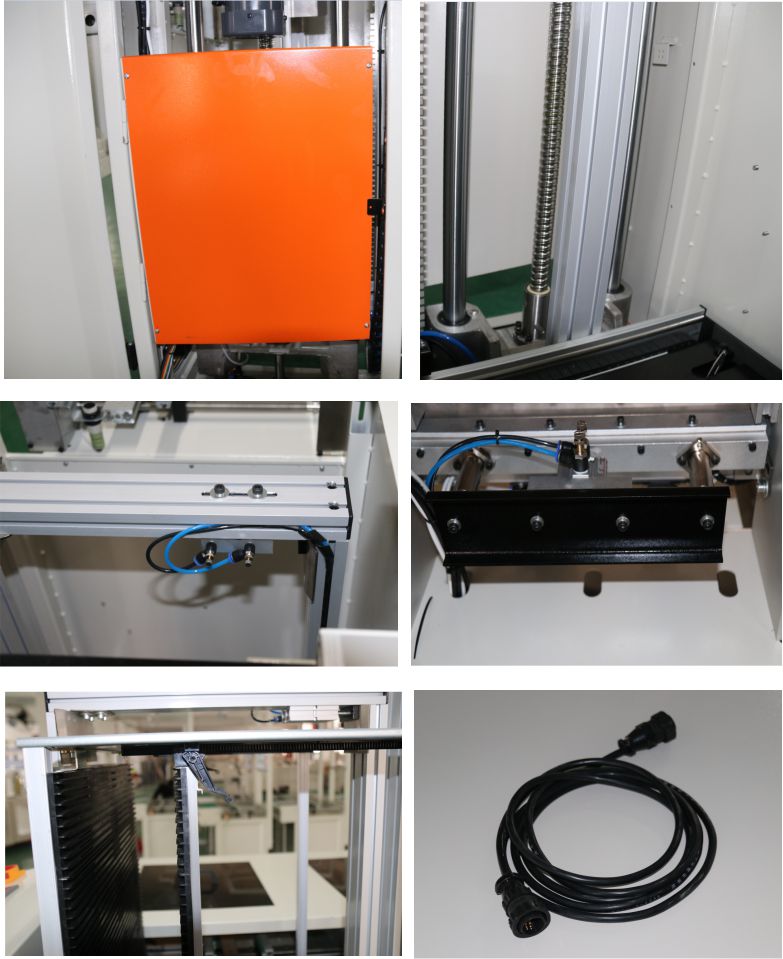

Details:

Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

Services and commitments

Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
