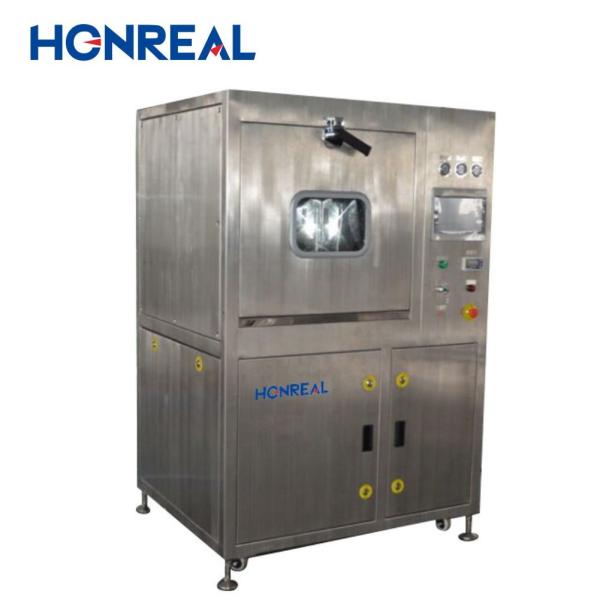

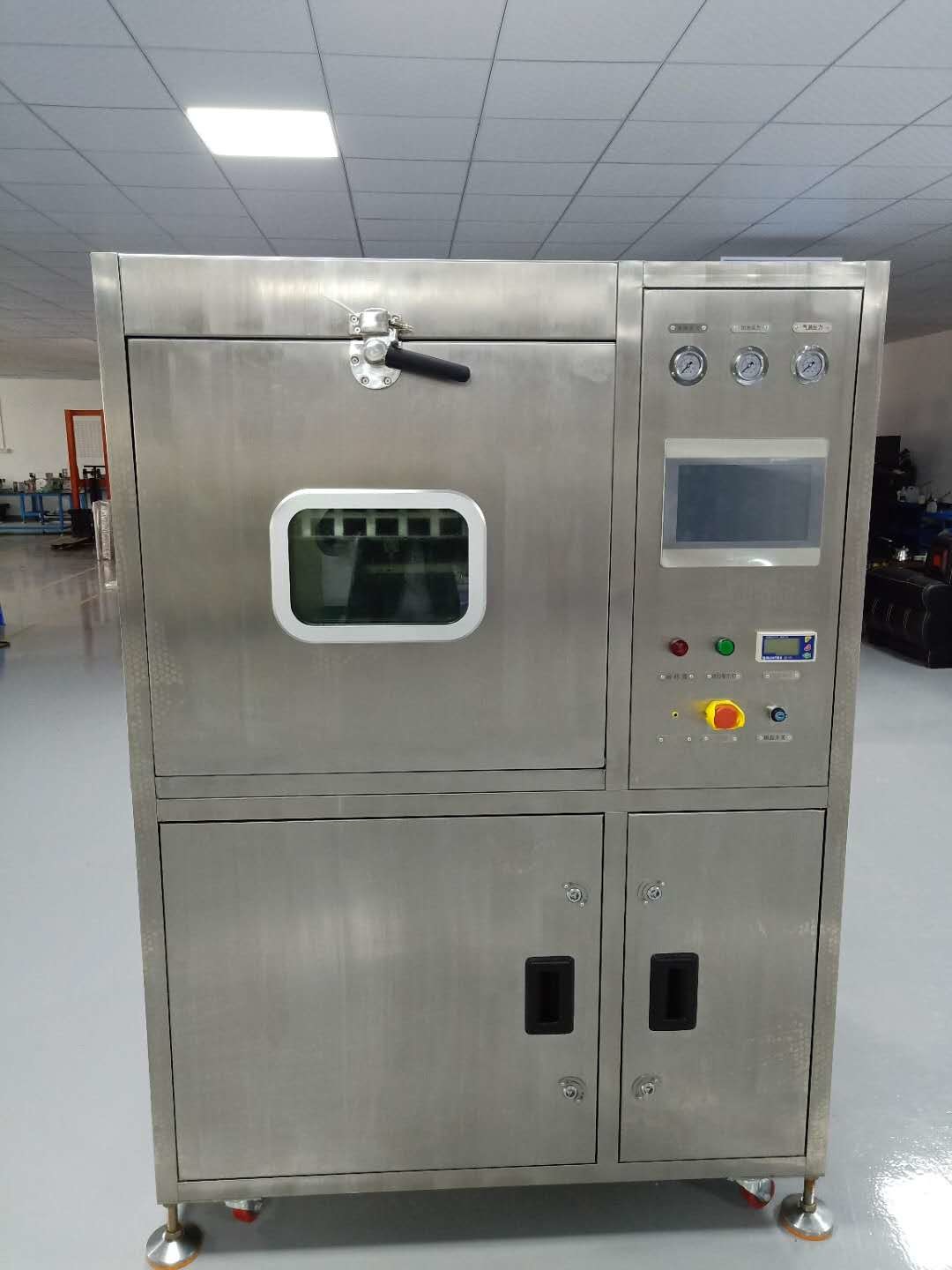

    70L SMT Cleaning Machine For PCBA Flux Ion Contamination Cleaning

    Ask Lasest Price
    Brand Name : HONREAL
    Model Number : HR-Q6
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets/ month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    70L SMT Cleaning Machine For PCBA Flux Ion Contamination Cleaning

    PCBA Flux And Solder Balls Residual Leftover Cleaning Machine Ion Contamination Clean Machine

    Features:

    1. A comprehensive cleaning system: the surface of the product residues of organic matter, inorganic substances for thorough and effective cleaning;

    2. Automatic cleaning mode: in a clean room to complete the cleaning, rinsing, drying all processes, small size compact;

    3. The whole process of visualization: spray room with a visual window, and install a LED lighting, cleaning process at a glance;


    Technical Parameters:

    contentParameter
    Model NoHR-Q6
    Clean area sizeL610*W560*H160mm 2layer
    Concentration tank capacity30L
    Dilution tank capacity70L
    Spray tank capacity17-23L
    Sprayer heater power6KW
    Cleaning time0~ 99 minutes(adjustable)
    Cleaning temperature(liquid)Room temperature ~75(adjustable)
    Rinse time1 minute/time(1-59 times/adjustable)
    Rinse temperature(DI water)Room temperature~75(adjustable)
    Drying time0~99 minutes/(adjustable)
    Resistivity monitoring range0~18M
    Solvent tank heater power9KW
    Drying temperatureRoom temperature~99/ (adjustable)
    Drying heater power/KW6KW
    Injection pressure30PSI- 90PSI (adjustable)
    Chemical-grade filter

    0.22μm (filter particles:solder paste, rosin,

    flux and contaminants)

    Di water filter1 inch fast junction type interface
    Chemical discharge port1 inch fast junction type interface
    Real-time pressure gauge3 PCS (nozzle/DI water/waste)
    Horizontal spray pump5.5KW
    Exhaust port sizeΦ100(W)*30mm(H)
    Power ;air sourceAC380V 50HZ 65A/0.45MPa~0.75MPa
    Net weight400kg
    DimensionL1400*W1350*H1830mm

    70L SMT Cleaning Machine For PCBA Flux Ion Contamination Cleaning70L SMT Cleaning Machine For PCBA Flux Ion Contamination Cleaning70L SMT Cleaning Machine For PCBA Flux Ion Contamination Cleaning


    Company Information

    Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents .

    Certification



    FAQ

    Q1: What is the cycle time of HR-Q6 batch cleaning machine?

    A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.


    Q2: What liuqid can be used in HR-Q6 to clean PCBA?

    A2: Water-based PCBA cleaning liquid wash, DI water rinse.


    Q3: Have many pcbas can HR-Q6 clean in one cycle?

    A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.


    Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?

    A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.


    Comparison pictures before clean and after clean:

    Stainless steel material PCBA surface conformal coating automatic removing machine 7
