Loose Radial Component Lead Cutting Forming Machine Electrolytic
Capacitor Bending Machine

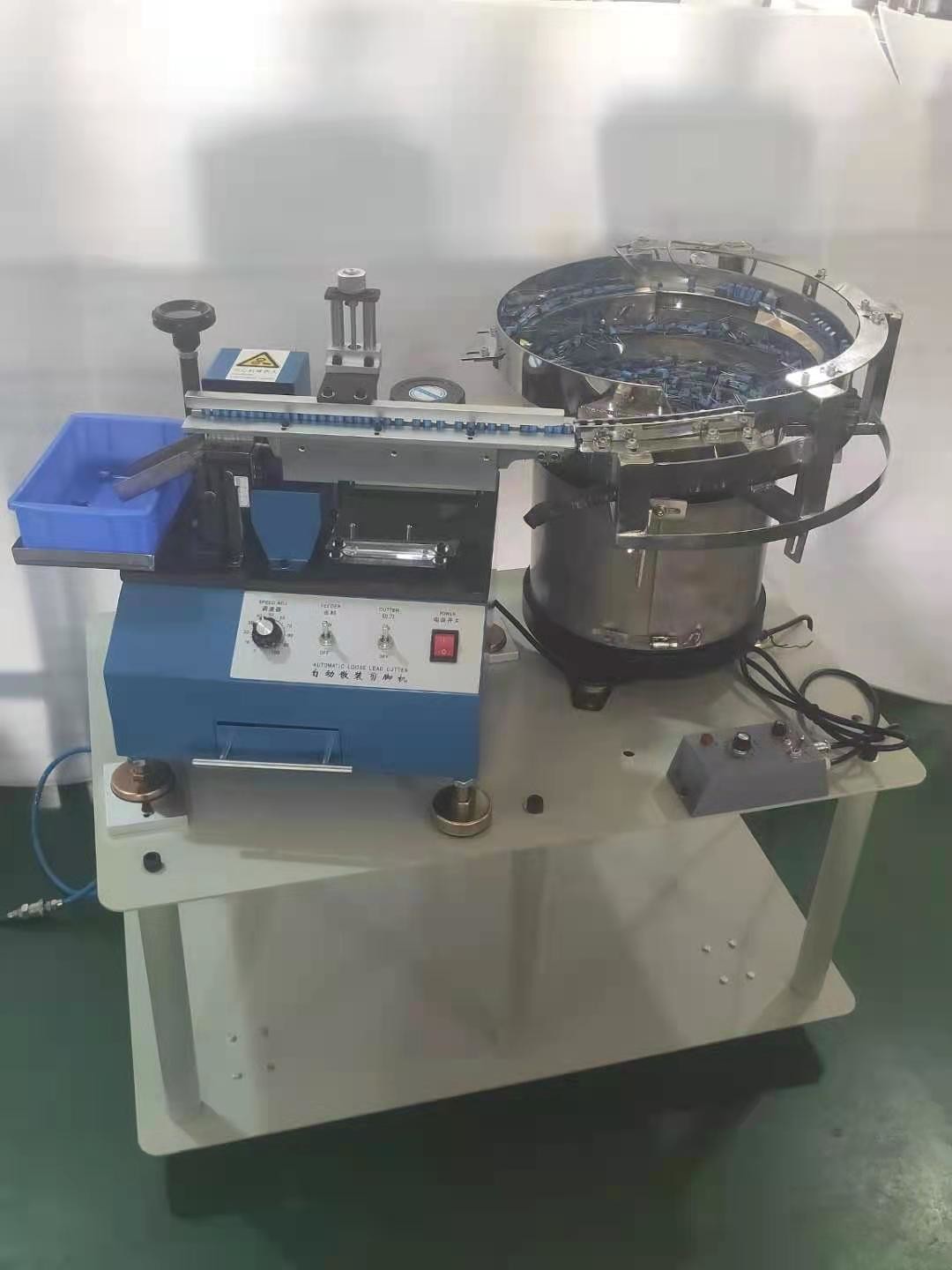

Name:Semi-automatic capacitor cutting machine
Model:SC-104A
Voltage :220V AC 60Hz/50Hz 40W
Size:L360*W300*H350MM
Weight:35kg
Efficiency:2500-3000PCS/H (It depends on the worker)
Features:
1. suitable for bulk, tube radial parts cutting foot operation
2. the use of plane vibration feeding method, smooth and smooth
discharge, the size of the parts can be applied.
3. special cutting method, the tool adopts Japanese imported steel,
long life, easy to adjust, easy maintenance.
4. Small size, simple operation method, easy maintenance.
5. high precision cutting foot, the shortest can be cut to 2.5MM
(shorter need to customize)
6. the controller adopts Japanese imported electronic components,
long life, smooth feeding.
7. The steel plate of the equipment body is high quality steel,
strong and thick; the blue spray paint on the surface is a special
process, not easy to scratch off.
Description Remarks
A body length 3~25 adjustable
H foot length 2.5~20 adjustable
W wire diameter 0.4~1.0 common
Unit: MM
Note :This machine can cut the following component pins .
Our Service
1.Pre-consultation: provides professional SMT solutions for the
full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure
smooth production.
4. Technical Training: provides professional training from Level 1
to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all
products.
FAQ
1) This is the first time I use this kind of machine, is it easy to
operate?
There is english manual or guide video that show you how to use
machine.
If you still have any question, please contact us by e-mail /
skype/ phone /trademanager online service.
2) How is the training?
A:After buying our machines, your engineers can go to our company
or it is so easy to operate
the machine according the training video and user manual,the user
manual will come with the machine together.
3) I would like to ask you if it's possible to have my logo on the
product.
We hope you know that our company perfectly support customized logo
service,we’re do this. Besides, it's totally free,so just tell us
your requirements.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment
methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma
invoice.
E. We prepare for your order in terms of the proforma invoice after
confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
