    Three Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly Line

    Ask Lasest Price
    Brand Name : HONREAL
    Model Number : HR-250X
    Certification : CE
    Price : USD 2500-3800 Per Set
    Supply Ability : 100SET/Month
    Delivery Time : 10-20Workdays
    Payment Terms : L/C,T/T,Western Union
    • Product Details
    • Company Profile

    Three Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly Line

    Brand New High Quality SMT Automatic Magazine Pcb Loader Unloader For SMT Assembly


    Product introduction:
    1.This equipment is used to collect PCBs into magazine at the end of SMT production line
    2.Stable and reliable PLC control system;
    3.Easy to operate LED touch screen control interface;
    4.The pneumatic clamps of top and bottom three point provided for the magazine alignment;
    5.Effective thrust design can ensure the PCB is unbroken;
    6.2magazines loading capability.
    7.Direction from left to right or right to left(optional).
    8.Machine always fault monitoring;
    9.Solid and stable design;
    10.SMEMA port is compatible;


    Technical parameters

    FunctionThis equipment is used to collect PCBs into magazine at the end of SMT production line

    PCB thickness

    Min0.6mm

    Magazine number

    Transport up:1pcs,transport down:1ps,(or customized)

    Step pitches select

    1-4(10mm step pitches)

    PCB loading time

    Approx 6 seconds

    Magazine change-over time

    Approx 30 seconds

    Transport direction

    Left to right/right to left(optional)

    Transport height

    900±20mm(or customized)

    Air pressure

    4-6 bar, MAX30L/minute

    Power supply

    100-230V AC(customized) single phase, MAX 300V/A


    Specifications

    Model No

    HR-250XHR-330XHR-390XHR-XB460X
    PCB size (L×W)~(L×W)mm(50x50)~(350x250)(50x50)~(455x330)(50x50)~(530x390)(50x50)~(530x460)
    Machine size (L×W×H)mm1700×750×12001950×830×12002210×920×12002210×990×1200
    Magazine size (L×W×H)mm355×320×563460×400×563535×460×570535×530×570
    Weight130kg150kg170kg

    185kg






    Three Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly LineThree Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly Line




    Who We Are ?
    Shenzhen Honreal Technology Co., Ltd. is recognized as a prominent national high-tech enterprise, specializing in the research, development, production, and sales of SMT equipment. We proudly serve renowned electronic companies listed among the world's top 500. Our company has a registered capital of 5 million, accompanied by a highly skilled technical team and a remarkable aptitude for technical innovation. Our enduring objective is to establish an improved product supply chain and service team, aimed at fulfilling diverse customer requirements. We are committed to comprehending our customers, prioritizing their needs, and delivering valuable services that exceed expectations.


    Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.


    Work shop
    Three Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly Line


    Certification

    Three Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly Line

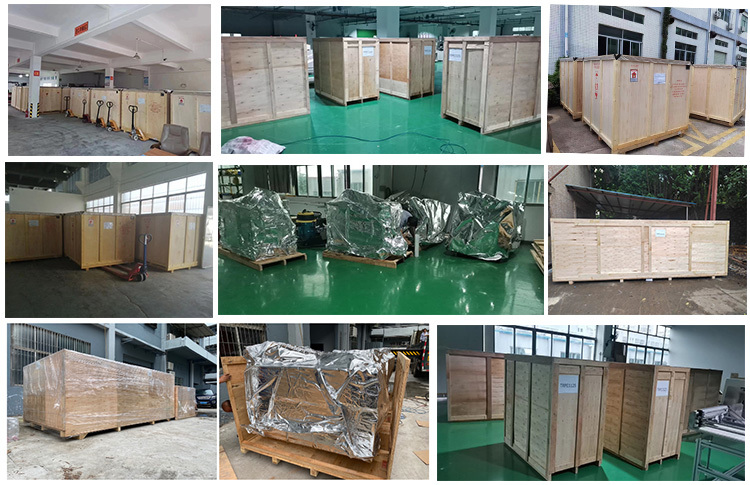

    Packing


    Quality Three Magazine Rack Capability Automatic PCB Loader Unloader For SMT Assembly Line for sale
