    SMT Machine Feeder Tape Splicing Tool 8mm Automatic Splice Station

    Ask Lasest Price
    Brand Name : Honeal
    Model Number : BW-HP08
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,, Western Union, MoneyGram
    Supply Ability : 100 Sets Per Month
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

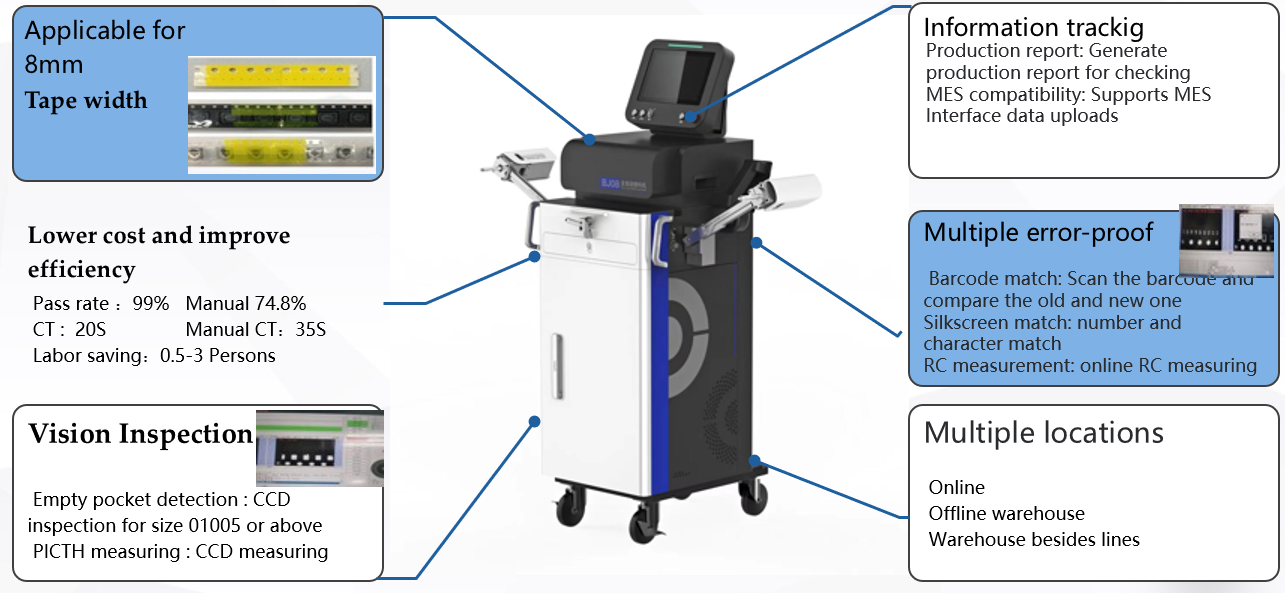

    SMT Machine Feeder Tape Splicing Tool 8mm Automatic Splice Station

    Splicing introduction


    The splicing BW-HP08 is developed for SMT automatic production line, fast line switch without stop, real-time error-proof. It can automatically detect the position of empty pocket on the head and tail of two rolls of the same component, accurately cut and splicing, and pass rate as high as 99%. With standard RC measurement, silkscreen AOI match and empty pocket detection function, reducing manual operation and cost, great improve the SMT production line OEE.


    FUNCTlONAL ADVANTAGES


    Easy to operation:5 Mins to learn to operate the machine.

    lmprove efficiency: The pass rate is 98%+,helps improve efficiency

    Traceability:Automatically generat splicing report.

    Empty pocket detection:CCD capture size 01005 and above SMD components.

    Multiple Error-proof: 1.Automatically compare 1st and 2nd scanned barcodes.

    2.Silkscreen&character identificating & comparison.

    3.Resistance and capacitance values measurement.


    TypeBW-HP08
    Dimensions380*470*1450mm
    Weight95KG
    Work height900±15mm
    Reel Width8mm Paper Reel and Plastic Reel
    CCD visionPitch, empty pocket Font&characters printing comparison
    RC component size01005/0201/0402/0603/0805/1206/1210
    Measurement Frequency50HZ-200KHZ
    LCR measurement accuracy0.05%
    Display resolutionR:0.01mohms-99.9999mohms
    C:0.00001pF-9.9999F
    Splicing CT8-10S(Excludes manual time)
    Pass rate99%
    MES InterfaceSupported
    IPCIPC ,10” Touch panel
    OSwin10
    Battery voltageDC 48V Lithium battery
    Rate working VoltageDC 48V,AC 110-220V
    Reel cutting methodAutomatically
    Other configuration option

    Outside AC dual reel support arms, print
