High Quality Low Cost On Line THT Through Hole Selective Wave
Soldering Systems
Selective wave soldering is a special form of wave soldering
invented to meet the development requirements of through-hole
components soldering. It is mainly suitable for the soldering of
through-hole components in high-end electronic products. For
example: military electronic products, automotive electronics,
switching power supply products and other industries which require
higher soldering reliability.
Advantageous:
1.Integrated full-functional model, the whole motion platform
integrated spray and welding, compact space.
2.PCB plate fixed, spray and welding platform moving.
3.High welding quality, greatly improve the pass rate of welding.
4.Modular design of SMEMA online transportation, support customers
for flexible line formation.
5.Full PC control. All parameters can set in PC and saved to PCB
menu, like moving path, solder temperature, flux type, solder type
,n2 temperature etc, best trace-ability and easy to get repeat
soldering quality.
| Machine name | SELPOT-400 |
| General |
| dimension | L1520mm X W1650mm X H1650mm |
| general power | 18kw |
| consumption power | 5-7kw |
| power supply | Three-phase 380V 50HZ |
| net weight | 1200KG |
| reuiqred air source | 0.4-0.6MPa |
| required air flow | 8-12L/min |
| required N2 pressure | 0.4-0.6MPa |
| required N2 flow | more than 2cubic meter per hour |
| required N2 purity | >99.998% |
| required exhausting | 500--800CMB/H |
| carrier or PCB |
| carrier | according product |
| max carrier size | L400 x W400 mm |
| PCB thickness | 0.2mm-----6mm |
| pcb edge | 5mm or more |
| controlling & conveyor |
| controlling | Industrial PC |
| conveyor width | 100-400MM |
| conveyor type | SUS roller |
| conveyor thick | 2---6mm (edge thickness or carrier thickness) |
| PCB conveyor direction | Left to right |
| PCB conveyor up clearance | 100MM |
| PCB conveyor bottom clearance | 30MM |
| conveyor load | <10kg |
| conveyor rail | Aluminum rail |
| conveyor height | 900+/-30mm |
| Motion table |
| motion axis | X, Y, Z |
| motion control | Closed-loop servo control |
| motion motor | Panasonic servo motor |
| ball screw | Hiwin |
| position accuracy | + / - 0.05 mm |
| chassis | metal welding |
| Flux management |
| flux nozzle | Japan Lumina |
| nozzle durability | stainless steel |
| flux tank capacity | 3L |
| flux tank | pressure tank |
| alcohol tank capacity | 1L |
| alcohol tank | pressure tank |
| Preheat |
| preheat method | upper IR heating |
| heater’s power | 13.5kw |
| temperature range | 25--240℃ |
| solder pot |
| standard pot number | 1pcs |
| solder pot capacity | 13 kgs / solder pot (Electromagnetic pump) |
| solder temperature Control | PID |
| melting time | 20--30 Minutes |
| max solder temperature | 350 ℃ |
| solder heater | 1.2kw |
| solder nozzle |
| nozzle | customized |
| material | high carbon alloy |
| standard equipped nozzle | sdandard equipped 5pcs/ solder pot(the inside diameter of nozzle
2.5mm, 3mm, 4mm, 5mm,6mm ) |
| N2 management |
| N2 heater | standard equipped |
| ID N2 temp range | 0- 350 C |
| N2 consumption | 2 m³ /h / nozzle |

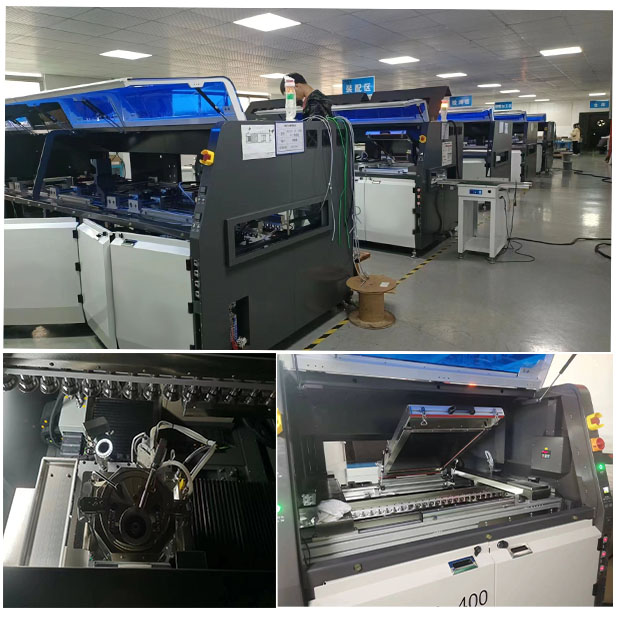

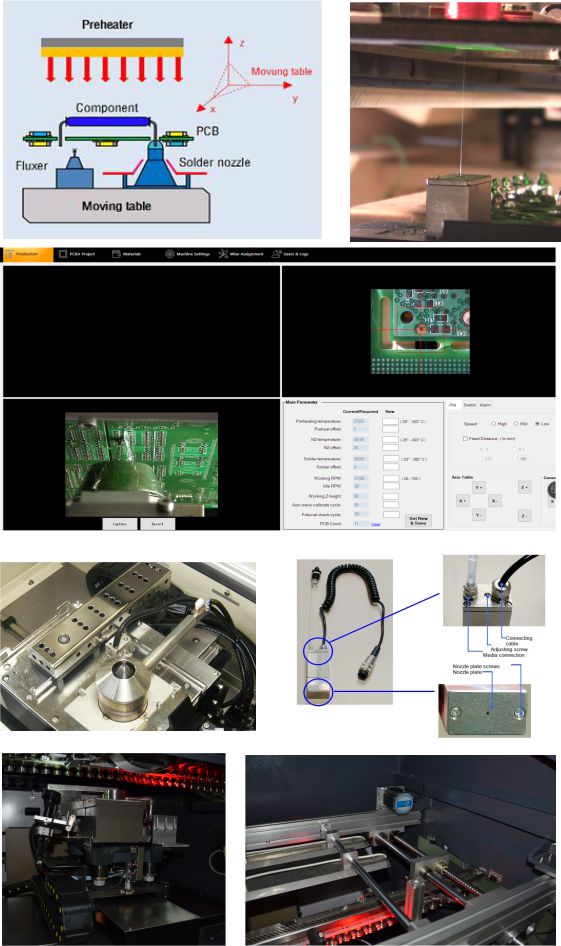

Details:
Hardware equipment requirements
1.Minimum configuration
The processor is not less than 2.0GHz, internal storage is not less
than 4GB, free disk space is not less than 16GB.
2.Recommend configuration
Processor quad-core 1.8GHz, internal storage 8G, disk space left
512GB, gigabit network card.
3.Screen resolution
1920 * 1080 (necessary)
4.Supported software
Operating system:Win7 64 bit,Win10 64 bit
