Product Description:
The X-ray machine is powered by a 220V/50Hz power supply that
ensures stable and consistent performance. The machine is equipped
with an industrial PC that runs on Windows 7, with a 24″ LCD flat
panel display that provides clear and detailed images for easy
inspection.
The machine has a dimension of 1300mm(L) * 1320mm(W) * 1800mm(H),
which makes it compact and easy to manoeuvre. It is also equipped
with a loading platform that measures 520mm×520mm, which can handle
different sizes of PCBs.
The Chip Bubble X-ray Inspection Machine is specifically designed
for inspecting chip bubbles in PCBs. It uses advanced X-ray
technology to detect and analyse any defects or anomalies in the
PCBs. The machine is easy to use and requires minimal training to
operate.
Whether you are a small or large-scale PCB manufacturer, the Chip
Bubble X-ray Inspection Machine is an essential tool that can help
you achieve high-quality products. Its accurate and efficient
inspection process ensures that your products meet the required
standards and are free from defects.
Overall, the Chip Bubble X-ray Inspection Machine is a reliable and
efficient tool that is suitable for any PCB manufacturer. Its
advanced technology and ease of use make it a must-have for anyone
looking to improve their inspection process.
Features:
Product Name: X Ray Machine
Resolution: 5.8Lp/mm
Weight: about 1250Kg
Magnification Ratio: Geometric magnification of 150 times
X-ray Source Brand Type: HAMAMATSU, Hamamatsu, Japan, Closed
Microfocus X-ray Source
Voltage Current: 90kv, 10-200uA
Introducing the Printed Circuit Boards Pcb X Ray inspection
machine, perfect for detecting any flaws in your products. With a
resolution of 5.8Lp/mm, this machine provides high-quality images
for accurate inspection. Weighing about 1250Kg, it is sturdy and
reliable for long-term use. The magnification ratio of 150 times
offers a close-up view of any defects. The X-ray source brand type
is HAMAMATSU, Hamamatsu, Japan, Closed Microfocus X-ray Source,
which guarantees precision and accuracy. With a voltage current of
90kv, 10-200uA, this chip bubble X-ray inspection machine is ideal
for your Printed Circuit Boards Pcb X Ray inspection needs.
Technical Parameters:
Imaging Unit Brand Type | iRAY, Amorphous Silicon Flat Panel Detector |
Dimension | 1300mm(L) * 1320mm(W) * 1800mm(H) |
X-ray Source Brand Type | HAMAMATSU, Hamamatsu, Japan, Closed Microfocus X-ray Source |
Maxi Power | 2.0KW |
Magnification Ratio | Geometric magnification of 150 times |
Weight | about 1250Kg |
Voltage Current | 90kv, 10-200uA |
Focus Size | 5μm |
Product Category | X Ray Machine |
Maxi Sample Weight | 10kg |
Applications:
Printed Circuit Boards Pcb X Ray inspection machine
This X Ray Machine is ideal for the inspection of Printed Circuit
Boards (PCBs) in the electronics industry. The machine is equipped
with a high-resolution X-ray source from HAMAMATSU, Japan, which
provides a focus size of 5μm and a resolution of 5.8Lp/mm. This
makes it possible to inspect the smallest details of the PCBs,
ensuring that they are free from defects such as cracks, voids, and
short circuits.
Chip bubble X-ray inspection machine

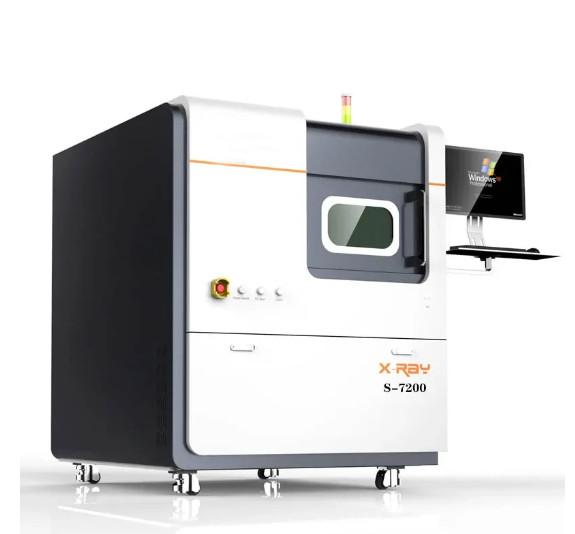

The Honreal S-7200 X Ray Machine is also suitable for the
inspection of chips and bubbles in various industries. With its
high-resolution X-ray source, it is able to detect even the
smallest defects in chips and bubbles, ensuring that they are of
high quality and meet industry standards.
Other product application occasions and scenarios include:
Industrial quality control
Non-destructive testing of materials
Medical imaging
Forensic investigation
The Honreal S-7200 X Ray Machine is available for purchase with a
minimum order quantity of 1 set. The price is negotiable, and the
payment terms include T/T, Western Union, and MoneyGram. The
machine has a supply ability of 50 sets per month and a delivery
time of 20 work days. It is packaged in an export wooden box
packaging and has a weight of about 1250Kg. The dimensions of the
machine are 1300mm(L) * 1320mm(W) * 1800mm(H).
Support and Services:
Product Technical Support:
24/7 technical support available
Expert technicians for installation, maintenance and
troubleshooting
Online resources, including user manuals and FAQs
Product Services:
Installation and set-up assistance
Regular maintenance and calibration services
Repair services with genuine parts and components
Training and education for operators and technicians
Packing and Shipping:
Product Packaging:
1 X Ray Machine
1 Power Cord
1 User Manual
1 Set of Accessories
Shipping:
Shipping Method: Standard
Shipping Time: 3-5 business days
Shipping Cost: Free
FAQ:
Q: What is the brand name of the X Ray Machine?
A: The brand name of the X Ray Machine is Honreal.
Q: What is the model number of the X Ray Machine?
A: The model number of the X Ray Machine is S-7200.
Q: What is the certification of the X Ray Machine?
A: The X Ray Machine is CE certified.
Q: Where is the X Ray Machine manufactured?
A: The X Ray Machine is manufactured in China.
Q: What is the minimum order quantity for the X Ray Machine?
A: The minimum order quantity for the X Ray Machine is 1 set.
Q: Is the price of the X Ray Machine negotiable?
A: Yes, the price of the X Ray Machine is negotiable.
Q: What payment terms are accepted for the X Ray Machine?
A: The accepted payment terms for the X Ray Machine are T/T,
Western Union, and MoneyGram.
Q: What is the supply ability of the X Ray Machine?
A: The supply ability of the X Ray Machine is 50 sets per month.
Q: What is the delivery time for the X Ray Machine?
A: The delivery time for the X Ray Machine is 20 work days.
Q: How is the X Ray Machine packaged for delivery?
A: The X Ray Machine is packaged in an export wooden box packaging
for delivery.
