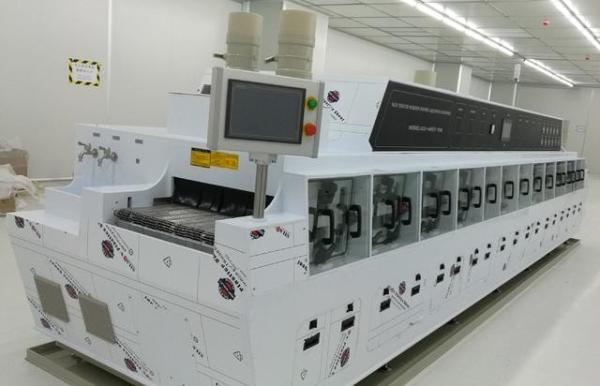

    Chemical Cleaning Section SMT Cleaning Equipment Corrosion Resistant PP Material

    Ask Lasest Price
    Brand Name : HONREAL
    Model Number : HR-5800
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets/ month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    Chemical Cleaning Section SMT Cleaning Equipment Corrosion Resistant PP Material

    1.Complete machine description:

    • The whole machine is made of PP plate imported from Taiwan, with beautiful appearance.
    • Based on the good chemical characteristics of PP board, the machine can adapt to alkaline cleaning agent and acid cleaning agent, and there is no limit on which cleaning agent to use. The acid and alkaline resistance is far better than the cleaning machine made of ordinary stainless steel.
    • Based on the good oxidation resistance of PP material, the appearance and interior of the machine are still as new even after years of use.
    • All PP plates are processed by CNC.
    • The bottom of all tanks are welded with three layers of reinforcement to ensure no leakage.
    • The frame underframe is a thickened steel frame, wrapped in PP plate. While PP material ensures chemical properties, steel underframe ensures machine strength.
    • Customized 316 stainless steel fan-shaped nozzle
    • Condensate recovery system in chemical section (optional)

    2.CLEANING PROCESS
    1. Chemical cleaning module
    1.1.Chemical pre-cleaning or isolation section
    Connect DI water or cleaning agent to the product for preliminary spraying cleaning, after cleaning the water orsolution flow back to the chemical tank or direct discharge.
    Role: wash away the large pollutants on the board surface, such as solder ball, dust, etc., filtration system isused to avoid the large pollution flow into the water tank to block the pump.
    1.2.Chemical cycle cleaning
    Clean both sides of PCBA by pumping water from the solvent tank, and then return the water to the solventtank or discharge directly. Chemical cleaning is also divided into chemical cleaning 1 and chemical cleaning 2.
    Role: chemical decomposition, decomposition flux internal tension, and separate flux from the surface of thePCBA by spraying water pressure.
    1.3.wind cutting isolating
    Clean and air-cut the PCBA board surface by the nozzle and the air knife mixing to ensure that the PCBAboard does not carry water and solvent to the next washing tank.
    Role: prevent the DI water tank from contaminating the washing tank.
    2. DI rinsing module
    2.1DI pre-rinsing(recycle washing)
    Connect DI water to the product for preliminary spraying cleaning, and the water will flow back to the pre-rinsing DI tank after cleaning.
    Role: flush away the residue of cleaning agent on the surface of the board to reduce the cleaning agent into the DI rinsing section and contaminate the DI water tank.
    2.2Wind cutting isolating
    The PCBA board surface is cut with an air knife to remove most of the water residue from the surface andensure that no DI water is carried on the surface of the PCBA board to the drying section.
    2.3.DI water cycle rinsing
    Clean both sides of PCBA by pumping water from DI tank, and the water will return to DI tank after cleaning.DI water cycle rinsing is divided into two sections: rinsing 1 and rinsing 2, each with a water tank.
    Role: flushing away flux or chemical residue by spray water pressure.
    2.4.Final rinsing
    DI generator directly supplies DI water to this section for final flushing, after which the water is directlydischarged or flows into DI tank.
    Role: ensure that the cleaning medium is up to standard.
    3. Final wind cutting isolating and drying
    The PCBA board surface is cut with an air knife to remove most of the water residue from the surface andensure that no DI water is carried on the surface of the PCBA board to the drying section.
    Role: prevent DI water from entering the hot air drying section, so as not to affect the air drying effect.
    3.1.Final wind cutting isolating(cold air drying).
    3.2.Hot air drying.
    3.3.Cold air drying.


    3.TECHNICAL PARAMETERS

    ItemDesignationTechnical index
    1SizeL5860mm*W1650mm*H1650mm
    2PowerAbout 106kw
    3Size of product that can be cleaned500mm(W)*450mm(L)*80mm(H)
    4Cleaning liquid consumption1.5-2.5L/H
    5DI water consumption6L-12L/H
    6Conveyor speed10mm/min-1000mm/min
    7Control modeTouch screen + PLC
    8Body materialCorrosion resistant superior PP material
    9Mesh belt materialSUS316
    10Power supply requirements3PH, 380 VAC, 5 wires
    11WeightAbout 2200kg
    12DI water quality requirements>15MΩ
    13DI water flow requirements0.5 m³/h
    14Ventilation requirements5400 m³/h
    15Running noise< 68Dba
    16Spraying pressure of chemical cleaning area25-45psi
    17Spraying pressure of DI rinsing area25-45psi
    18Weight of product to be cleaned<10kg
    19Temperature of liquid tank in chemical cleaning section25-75℃
    20Air knife angleAngle and height adjustable
    21Spraying tube installation modeQuick connection for easy replacement
    22Mesh belt max width500mm
    23Automatic liquid filling systemYes, option item
    24Liquid pipe installation modeQuick connection for easy replacement
    25Filtration accuracy (level 2)100um

    4.Product features


    1.The main control panel

    • Display chemical cleaning pressure, rinsing pressure, DI water pressure, etc.
    • Equipped with various instruments, including ammeter, deionized water resistivity meter (option), pH of deionized water(option), etc.

    Pressure gauge


    2.Touch screen control system

    • Touch screen operating platform.
    • System parameter password protection.
    • Simple operation of friendly human - machine interface.
    • Alarm system and fault warning.
    • Limit protection function, when the device exceeds the limit value, it will be displayed from the touch screen and alarm will be given.
    • Three color warning lighthouse.
    • Omron PLC control and imported brand electronic control components.
    • Rugged, touch-screen operating platform.
    • The entrance is equipped with photoelectric sensor, which can automatically start/stop the equipment.

    Touch screen interface Electrical control box (Omron PLC)


    3.Stainless steel mesh conveyor system or chain conveyor system


    • 316L stainless steel mesh belt or conveyor chain, corrosion resistance.
    • Stepless speed regulation, adjustable 10-1000mm/min.
    • The entrance has the photoelectric sensor, may count the product quantity.
    • Adopt the concept of energy saving and environmental protection design, can adopt induction start function.

    photoelectric sensor stainless steel mesh belt

    4. praying tube and spraying nozzle

    • Chemical cleaning section uses 316L stainless steel nozzle and tube, corrosion resistance.
    • The DI rinsing section adopts polyester nozzle and tube with adjustable angle.
    • Nozzle angle adjustable, easy to disassemble.
    • Adopt medium and low pressure spraying with large flow design.

    Spraying nozzle and tube Filter


    5.The filtration system


    • Adopt secondary filtration design.
    • The primary filtration adopts the design of drawing, which is easy to maintain and mainly filters the large material pollutants.
    • The suction inlet of the water pump adopts secondary filtration to ensure that the water or cleaning liquid pumped by the pump will not bring contaminants to the surface of the product.

    6.Pipeline system

    • The pipes are made of PP material. All valves and pipes are Taiwan Sanli brand.
    • There is a valve at each interface.
    • Flexible quick connection is adopted for easy maintenance.
    • The pressure of each nozzle tube is adjustable.
    • Adopt double glazing design, convenient heat insulation and sound insulation, energy saving and environmental protection.
    • Large window design, you can observe the cleaning of the product.
    • The glass adopts quick loading and unloading design for easy maintenance.

    Pipeline system Sound-absorbing cotton of door
