    950*1460*1960mm X-Ray Component Counting Machine with MES Database Compatibility

    Ask Lasest Price
    Brand Name : Honreal
    Model Number : DS-3000
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,, Western Union, MoneyGram
    Supply Ability : 50 Sets Per Month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    950*1460*1960mm X-Ray Component Counting Machine with MES Database Compatibility

    Electronics production machinery SMT X-ray intelligent counter Automatic Electronic Smt X-ray Reel Components Counting Machine X-ray Counting Systems X-ray intelligent counter


    The X-ray intelligent counter is a sophisticated device used for counting and detecting objects in X-ray images. It utilizes advanced image

    processing algorithms and artificial intelligence to accurately identify and count specific items or substances within X-ray scans.

    The counter is commonly employed in various industries, such as security, healthcare, and manufacturing, where precise counting and detection

    of objects is crucial.


    Advantages :

    ● The X-ray source adopts the American VJ X-ray tube, which has a long life and is maintenance-free.

    ● The flat-panel detector adopts a 17-inch ultra-clear screen, with fast imaging and no distortion.

    ● Four 7-inch material plates or one 13 to 17-inch material plates can be calculated at the same time.

    ● Significantly reduce the counting time and avoid excess manpower. Instead, it can assist other personnel to close or change the line and shorten the time of switching and stopping.

    ●The counting machine uses digital data, which can print barcode stickers or upload the database directly. The material counting machine can greatly improve the shortage, loss, leakage and

    shortage of materials, digitally manage material storage, reduce the inventory cost of materials, and improve the accuracy of material inventory.

    ● There is no need to open the packaging bag to maintain the integrity of the coil, which will not affect the moisture resistance of the material.


    ● Deep learning: The ordering software adopts artificial intelligence deep learning algorithm. There is no need to bind components and algorithms, but uses AI to automatically identify components and automatically apply algorithms. The algorithm can learn pointed component data, such as: 1. Length-width ratio; 2. The angle of each corner of the component; 3. Slope from internal to external components; 4. The deformation law of the image of the component from the inside out, etc. With the increasing number of calculations of components, the results of counting materials are becoming more and more accurate. When encountering similar components, larger plates can also be easily dealt with.


    project

    DS-3000 Offline X-ray counting machine

    Flat panel detector

    Detector brand

    Haobo image

    Detector category

    Amorphous Silicon

    scintillating medium

    GOS

    Pixel matrix

    3072×3072

    image size

    430*430mm

    space resolution

    3.6LP/mm

    A/D converter

    1 bits

    Device Dimensions

    470*470*35mm

    X-ray source

    Brand

    American V J

    Tube voltage

    80kV

    Tube current

    0-1mA

    focus size

    30-40μm

    Cooling mode

    air cooling

    Radiation safety

    < 1uSv/hr(international standard)

    Radiation leakage dose<1µSv/h.(GB15208.1~2005)

    Load-bearing platform

    X axis

    400mm

    Y axis

    400mm

    Load-bearing platform

    10KG

    Test items and dimensions

    Maximum size of tray

    17 inches

    Minimum size of tray

    7 inches/contains smaller bulk material

    Maximum thickness of tray

    85 mm

    Compatible with the smallest device types

    01005 patch components

    Tray coverage

    database is continuously updated to


    cover 99% of materials in the market

    Operation System

    Windows10

    Display

    Dell 24 "LCD

    CPU

    Intel i7 9700

    complete machine

    Machine size

    908mmX1335mmX1968mm

    Equipment weight

    约800KG

    power supply mode

    AC110-230VAC,50/60Hz

    total power

    800W

    Loading and unloading mode

    manually placed,and the tray is automatically in and out

    Other specifications

    counting time

    about 4-6 seconds/plate or 4 plates

    counting accuracy

    can reach 99.99%

    Bar code scanning

    automatic one - dimensional two - dimensional bar code scanner

    Label printing

    can print material code and counting results in real time

    Detection components

    resistance, capacitance, inductance, crystal oscillator, LED, diode, transistor, multi-foot IC, etc

    Software

    support any format SPC statistics, pictures and results automatically save

    Docking system

    ERP, MES, etc

    Working environment temperature

    0-40℃

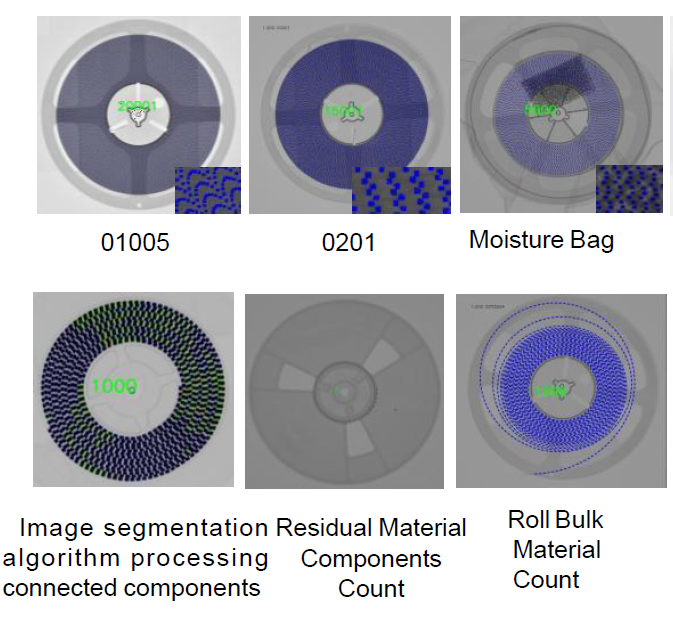

    Applications samples:
