High Precision SMT PCB AOI, PCB Automated Optical Inspection
Machine

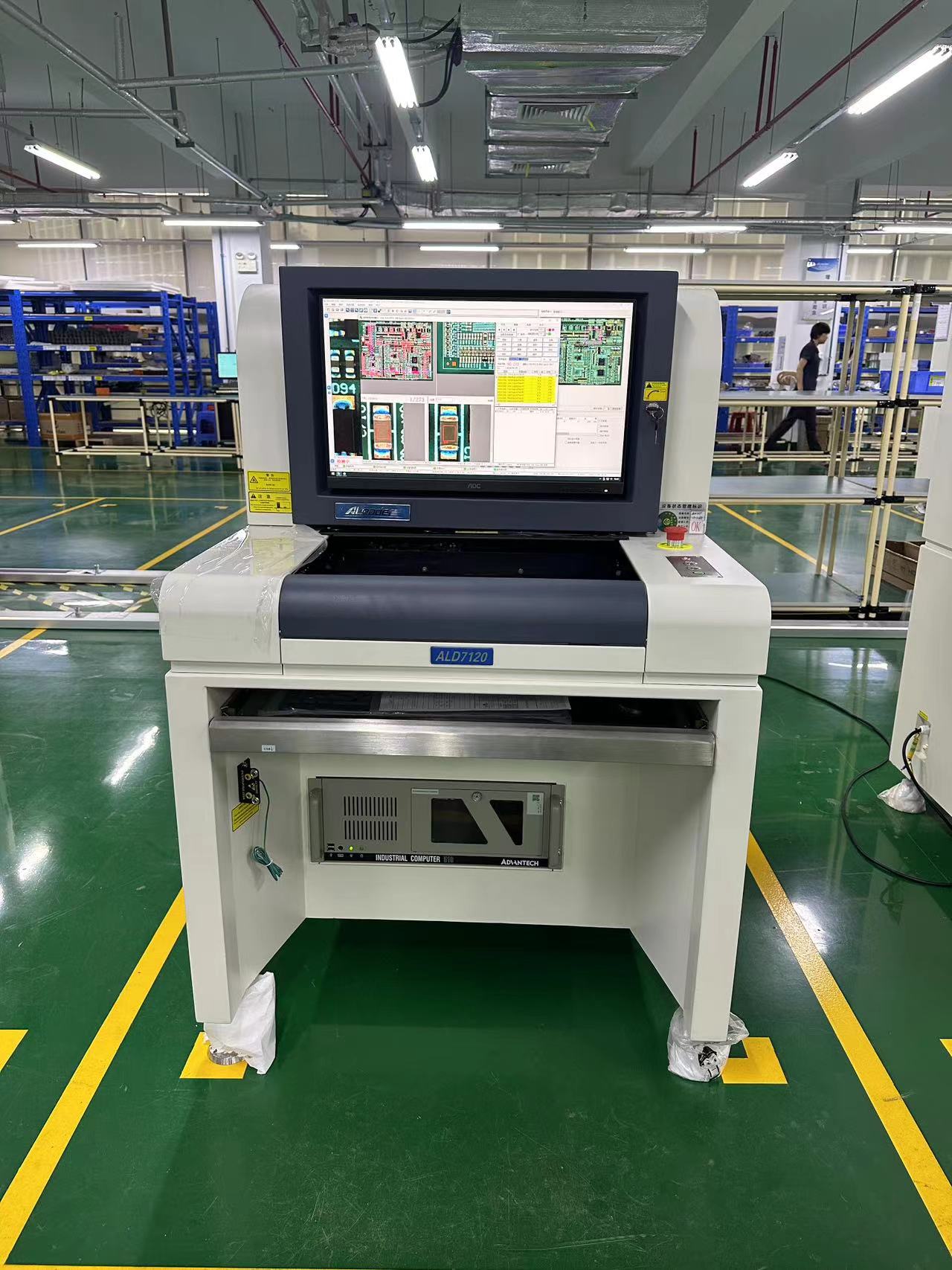

ALeader ALD7120 2D Offline AOI system is specifically designed for
the small and medium size SMT shops.
With its small footprint and quiet operation, ALD7120 can be used
in production as well as in the lab environment.
The system uses state-of-art i3D technology and equipped with the
high-speed camera and the multidirectional
lighting module.
The standard configuration includes SPC and Repair software,
installed on the system.
The ALD7120 can be used to inspect PCBs after reflow, after wave,
components on adhesives and more.
| Functional Specifications | ALD7120 | ALD7130 | ALD7150 |
Test Board |
After reflow |
| Test Method | Many leading international algorithms such as TOC, Histograms,
Match, Short, OTHER, CREST, PIN algorithms, auto set parameters according to different
test dots. |
Camera |
High speed intelligent digital industrial camera |
Resolution/Range/SPeed | (Standard):(Option): (Option): | 15μm/Pixel 10μm/Pixel 8μm/Pixel | FOV:36.00mmX30.72mm FOV:24.00mmX20.48mm FOV:19.20mmX16.38mm | (Speed)<200ms/FOV(Speed)<200ms/FOV (Speed)<200ms/FOV |
Light |
Extra bright RRGB coaxial ring tower LED light (Color light) |
Program Mode |
Manual programming, Auto frame, CAD input automatically correspond
to component library |
Remote control |
Remote control through TCP/IP. Check, start or stop the machine, or
modify the procedures at any time. |
| InspectionItems | Poor appearance like misalignment, insufficient, short, missing,
skewed, billboard, mounting on side, overturn, wrong part, damaged, polarity, pseudo soldering, missing solder,
excessive glue, solder void, solder-covering pin |
Special Features |
Multiple program running simultaneously(support auto change
program) |
SPC and program control |
Statistic and analysis of all test data ,check production and
quality analysis anywhere, can output Excel, Txt file |
Barcode System |
Camera can read and transfer the Barcode
automatically(one-dimension or two dimension),Multi-Mark function
(including Bad Mark) |
Server Mode |
Administrative data from many AOI through center server |
Operation System | Windows 10 |
Display/Output |
LCD |
| System Specifications | |
PCB size | 50×50mm(Min)～430×330mm(Max) | 50×50mm(Min)～620×460mm(Max) | 50×50mm(Min)～870×650mm(Max) |
PCB thickness | 0.3 to 5 mm |
Clamping System Edge Clearance | TOP:3.5mm Bottom:3.5mm |
PCB weight | 3KG |
PCB Tolerance |
＜5mm or 2% of PCB diagonal length |
PCB Height | Top Side: 30mm Bottom Side:80mm | Top Side : 30mm Bottom Side:120mm | Top Side: 30mm Bottom Side:120mm |
Conveyor |
Automatic clamp, Automatic compensation to avoid distortion |
Conveyor height | 850 to 920mm |
Conveyor Direction |
Left→ right or right→left |
X/Y Driver |
Screw and AC servo driver, PCB fixed, Camera in XY, approved with
CTQ |
Power Supply |
AC230V 50/60 less than Hz 0.5KVA |
Compressed Air |
Compressed air not used |
Weight |
About 290KG |
About 400KG |
About 550KG |
Dimension | 870×1070×1310mm (L×W×H) | 1090×1360×1390mm (L×W×H) | 1340×1750×1615mm (L×W×H) |
Humidity |
10～35℃ 35～80％ RH (no dew) |
Certificate |
According with CE standard |
Company Information
Shenzhen Honreal Technology Co.,Ltd is a national high-tech
enterprise,Specializing in smt equipment research and development,
production, sales. Services for the world's top 500 electronic
companies.The registered capital of the company is 5 million.Since
the establishment of the company, Honrealhas persisted in the
development of technology as the core, quality as its survival,
independent research and development, and continuous innovation.
After continuous efforts, it has a number of high-tech invention
patents
Certification
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous
testing before they are delivered to you, to ensure the excellent
performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company
or it is so easy to operate
the machine according the training video and user manual,the user
manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the
product.
We hope you know that our company perfectly support customized logo
service,we’re do this. Besides, it's totally free,so just tell us
your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is
enough to learn to operate the machines.
