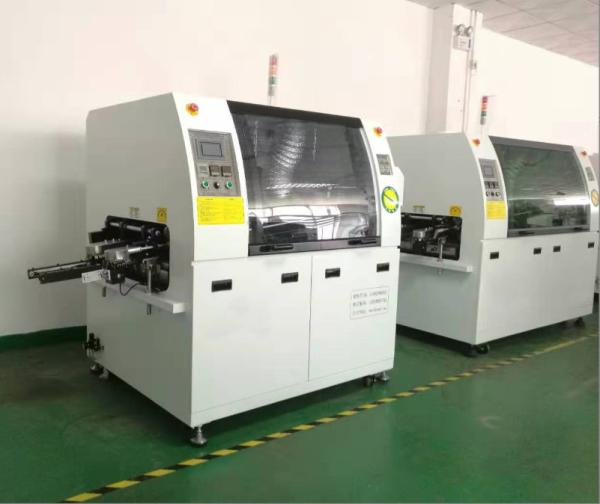

HR-200S Wave Soldering Machine
Product Features
1. Open-top streamlined shell design, beautiful appearance, easy to
clean.
2. The soldering furnace is made of alloy material. High-strength
and high-hardness special aluminum alloy rails, long service life.
3. Mitsubishi PLC + touch screen control technology is adopted to
ensure system reliability and stability.
4. The spray device adopts Japanese stepping motor, which can be
automatically adjusted with the width of the PCB, effectively
saving flux.
5. The tin furnace wave crest adopts stepless electronic frequency
conversion speed regulation, and the wave crest height can be
independently controlled.
6. The unique flux isolation device, the flux smoke is discharged
from the dedicated exhaust and recovery channel to meet
environmental protection requirements.
7. Programmable automatic switch date, time, temperature control
parameters, etc.
8. Equipped with cooling module, temperature compensation module,
suitable for lead-free and various process requirements.
9. Imported micro chemical pump, propanol cleaning agent, automatic
circulation cleaning chain claw.
10. The large motor full hot air preheating device is adopted to
fully stimulate the activity of the flux and obtain good welding
effect. Heat is radiated directly to the bottom of the PCB board,
heating up quickly and having a long service life.
11. Patented die-cast titanium alloy chain claws, non-stick tin,
never deformed, long service life, stable and reliable
transportation of PCB.
12. Full transparent observation window, convenient for observing
production and maintenance operations.
13. Manual lifting and in and out of the tin furnace, convenient
for adjustment. Backrest design is adopted to prevent damage to the
machine due to misoperation.
14. The transportation system adopts stepless electronic speed
regulation, PID closed-loop control, and stable transportation
speed.
15. Automatic wave when passing the board to minimize the amount of
tin oxidation.
16. The temperature control system adopts PID closed-loop control,
and the temperature control is stable and reliable.
17. Equipped with short circuit and overcurrent protection system.
| Model | HR-200S |
| Machine dimension | L2100×1050×H1450mm |
| Weight | 400kg |
| Color | Computer grey |
| General | |
| Main control | PLC+Touch panel control |
| Preheaters | 1 |
| Cooling zone | 1 |
| Cooling down slope gradient | Natural Air Cooled :3-4° C/sec |
| Exhaust requirement | ≥3m'/sec×2 |
| Compressed air requirement | >4kg/cm2 |
| Power requirement | 3 Phase 5 Cables 38oVac 50/60 Hz |
| Startup consumption | ≤8kw |
| Steady consumption | ≤2kw |
| Ramp up time | Pre-Heat : Approx 15min Solder Pot:Approx 70min |
| Temperature setpoint | Pre-Heat: Room Temp-200° C Solder Pot : Room Temp-300° C |
| Temperature control | PID Closed Loop Controlled |
| Temperature accuracy | ±1℃ |
| Temperature across deviation | ±2℃ |
| Hot air flow | Approx 50CFM |
| Process Width | 50-250mm |
| Process Height | 750mm±30mm |
| Conveyor speed | 0-1800mm/min |
| Product clearance | Reference To Finger Grooves; TopsSide ≥100mm;Underneath≥15mm |
| Fluxer | |
| Spray head transverse | SMG Pneumatic cy linder driving |
| Molecular size | 20-40 microns |
| Flux nozzle diameter | 1.3mm |
| Flux capacity | 20 liters |
| Solder pot | |
| Pot capacity | 120kg |
| Pot material | Stainless steel 316L |
| Wave displacement | Between Chip & Lambda 36mm |
| Dross amount | 0.19-0.21kg/hr |
